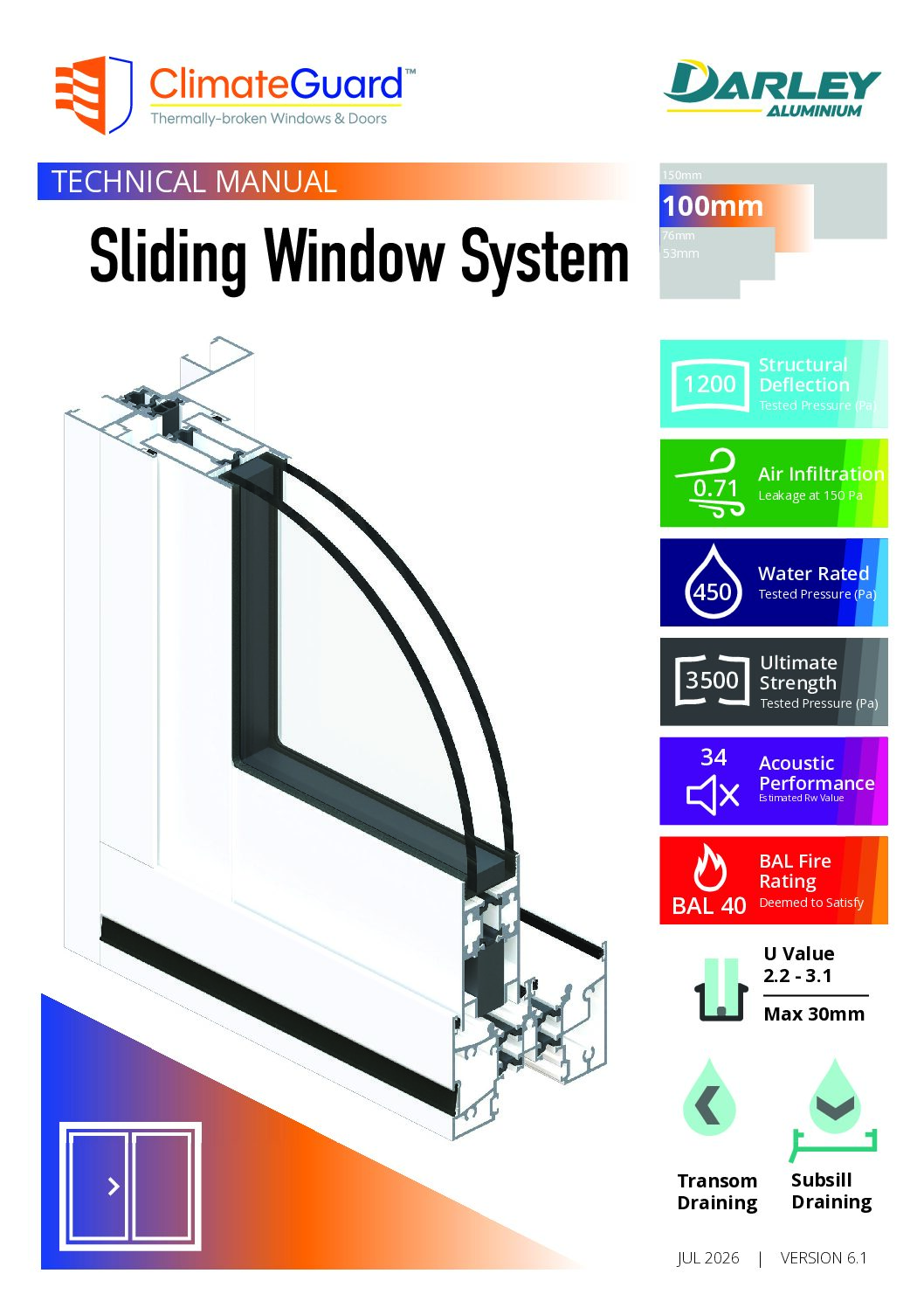

The ClimateGuard Sliding Window system provides a high performance sliding solution , that responds to the continual trend towards tighter energy rating requirements.
This system is entirely thermally broken and provides greater energy ratings, whilst maintaining a competitive level of wind and water performance.
.It is also most suitable to high end commercial developments & apartments and has been tested by a NATA accredited laboratory.
The Window Energy Rating Scheme (WERS) is accredited by the AFRC – which means that WERS ratings are compliant with the NCC.
Reports are prescribed both the window performance for total window U Value (Uw) and total window Solar Heat Gain Coefficient (SHGCw).
U-value measures how well a product prevents heat from escaping.
It is a measure of the rate of non-solar heat loss or gain through a material or assembly.
U-value ratings generally fall between 2.0-10.0 W/m2.K for Australian products. The lower the U-value, the greater a window’s resistance to heat and cold flow and the better its insulating value.
SHGC measures how well a product blocks heat caused by sunlight. SHGC is expressed as a number between 0 and 1. The lower a window’s SHGC, the less solar heat it transmits.
Under the Building Code of Australia, we are required to produce windows and doors that meet mandatory minimum specifications under Australian Standard (AS) 2047 – including AS1288.
The ClimateGuard Sliding Window system provides a high performance sliding solution , that responds to the continual trend towards tighter energy rating requirements.
This system is entirely thermally broken and provides greater energy ratings, whilst maintaining a competitive level of wind and water performance.
.It is also most suitable to high end commercial developments & apartments and has been tested by a NATA accredited laboratory.
The Window Energy Rating Scheme (WERS) is accredited by the AFRC – which means that WERS ratings are compliant with the NCC.
Reports are prescribed both the window performance for total window U Value (Uw) and total window Solar Heat Gain Coefficient (SHGCw).
U-value measures how well a product prevents heat from escaping.
It is a measure of the rate of non-solar heat loss or gain through a material or assembly.
U-value ratings generally fall between 2.0-10.0 W/m2.K for Australian products. The lower the U-value, the greater a window’s resistance to heat and cold flow and the better its insulating value.
SHGC measures how well a product blocks heat caused by sunlight. SHGC is expressed as a number between 0 and 1. The lower a window’s SHGC, the less solar heat it transmits.
Under the Building Code of Australia, we are required to produce windows and doors that meet mandatory minimum specifications under Australian Standard (AS) 2047 – including AS1288.
| System | Maximum weight per panel | Maximum height per panel | Maxiumim Width per panel | Glass Thickness | Test Report No. | Water Rating (Pa) | Structural (Pa) | Ultimate (Pa) |
|---|---|---|---|---|---|---|---|---|
| Climateguard Sliding Window | 300kg | 2400mm | 1200mm | 24-30mm | 0410.18 | 350 | 1200 | 3000 |
