CityView 45mm Water Rated Hinged Door

The CityView 45mm water rated hinged door system is the ideal choice for hinged doors offering a well-rounded solution for wind and water ratings.

Compatible with Darley’s other commercial window and door systems, the 45mm water rated door accepts a glass thickness of up to 28mm. Perfect for commercial applications such as offices, shopfronts and architecturally designed homes, this water rated door system provides excellent water ratings with and without a subsill.

Made with common aluminium extrusions and accessories currently used in Darley’s other window and door systems, commercial fabricators can save time and money using extrusions and methods they are already familiar with.

Design Features:

Accepts glass thickness from 6mm to 28mm
Compatible with other Darley Aluminium Commercial Systems and mainframe options
High water rating achievable for inward and outward opening configurations

Inwards and outwards water ratings attainable without subsills
Multipoint locking for a superior seal
Tested to AS2047 in an independent NATA accredited laboratory

Tested to AS2047

Under the Building Code of Australia, we are required to produce windows and doors that meet mandatory minimum specifications under Australian Standard (AS) 2047 – including AS1288.

Simulations of High Winds and Driving Rains

AS4420.2 Deflection Test – positive and negative wind pressures are applied to the face of the window to test the maximum deflection under wind load.
AS4420.5 Water Penetration Resistance Test – to verify that no water leaks through the window into the building.

Operating Force Requirement

AS4420.3 Operating Force Test – to verify that an opening sash is capable of opening and closing without undue effort.

Air Infiltration Pressure

AS4220.4 Air In filtration Test – the air leakage of a window is tested to ensure energy and acoustic efficiency.

Ultimate Strength Testing

AS4420.6 Ultimate Strength Test – negative and positive wind pressures are applied to the window to at least 1.5 times the design wind pressure to ensure it does not fail in unusual wind conditions.

CityView Cutting Sheets

Download CAD Drawings

Please note: file will be in .zip format.

About

CityView 45mm Water Rated Hinged Door

The CityView 45mm water rated hinged door system is the ideal choice for hinged doors offering a well-rounded solution for wind and water ratings.

Design Features:

Accepts glass thickness from 6mm to 28mm
Compatible with other Darley Aluminium Commercial Systems and mainframe options
High water rating achievable for inward and outward opening configurations

Inwards and outwards water ratings attainable without subsills
Multipoint locking for a superior seal
Tested to AS2047 in an independent NATA accredited laboratory

Wers Ratings

Testing

Tested to AS2047

Under the Building Code of Australia, we are required to produce windows and doors that meet mandatory minimum specifications under Australian Standard (AS) 2047 – including AS1288.

Simulations of High Winds and Driving Rains

Operating Force Requirement

AS4420.3 Operating Force Test – to verify that an opening sash is capable of opening and closing without undue effort.

Air Infiltration Pressure

AS4220.4 Air In filtration Test – the air leakage of a window is tested to ensure energy and acoustic efficiency.

Ultimate Strength Testing

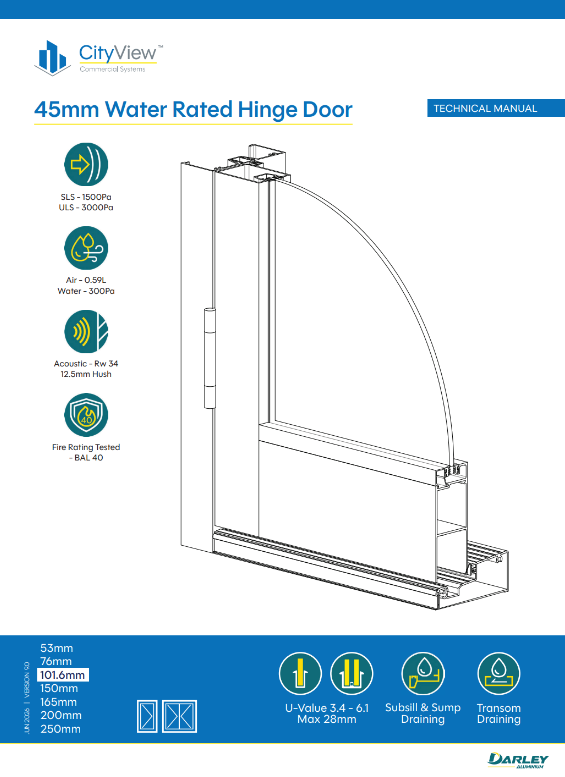

Technical Manuals

Cutting Sheet

CityView Cutting Sheets

CAD Drawings

Download CAD Drawings

Please note: file will be in .zip format.

image presents CityView 45mm Water Rated Hinged Door

Download the CityView™ Catalogue

Specifications

System	Maximum Weight	Maximum Height	Maximum Width	Glass Thickness	Test Report No.	Water Rating (Pa)	Structural (Pa)	Ultimate (Pa)
CityView 45mm Water Rated Hinged Door	N/A	2665mm	1067mm	6mm to 28mm	TBA	200Pa for inward opening (without suibsil)	1500	3000
CityView 45mm Water Rated Hinged Door	N/A	2665mm	1067mm	6mm to 28mm	TBA	300Pa for outward opening (without subsil)	1500	3000

Commercial Hardware

Find Out More

Window ID	System Description	Glazing Code	Glazing Description	Uw	SHGC	Tvw	Air Inf	Thickness	Supplier	BAL40	Rw	Price
DAR_059_01 A	45mm Water Rated Hinged Door SG	638ComPlsGy		4.70	0.36	0.26		#N/A	Viridian		34
DAR_059_02 A	45mm Water Rated Hinged Door SG	638ComPlsNtl		4.71	0.37	0.40		#N/A	Viridian		34
DAR_059_03 A	45mm Water Rated Hinged Door SG	6mmClr		6.13	0.58	0.60		#N/A	[Generic]	Yes*	34
DAR_059_04 A	45mm Water Rated Hinged Door SG	6mmGy		6.13	0.42	0.28		#N/A	[Generic]	Yes*	34
DAR_059_05 A	45mm Water Rated Hinged Door SG	6EnTech		4.72	0.50	0.54		#N/A	Viridian	Yes*	34
DAR_059_06 A	45mm Water Rated Hinged Door SG	6EnTechGy		4.75	0.34	0.27		#N/A	Viridian	Yes*	34
DAR_059_07 A	45mm Water Rated Hinged Door SG	6SolTech		4.72	0.39	0.43		#N/A	Solos	Yes*	34
DAR_059_08 A	45mm Water Rated Hinged Door SG	6SolTechGy		4.74	0.27	0.21		#N/A	Solos	Yes*	34
DAR_059_09 A	45mm Water Rated Hinged Door SG	6mmEVanClr		4.83	0.46	0.46		#N/A	Viridian	Yes*	34
DAR_059_10 A	45mm Water Rated Hinged Door SG	6mmEVanGy		4.83	0.30	0.22		#N/A	Viridian	Yes*	34
DAR_060_01 A	45mm Water Rated Hinged Door DG	6Clr-12Ar-6Clr		4.13	0.50	0.52		#N/A	[Generic]	Yes*	34
DAR_060_02 A	45mm Water Rated Hinged Door DG	6Gy-12Ar-6Clr		4.13	0.33	0.24		#N/A	[Generic]	Yes*	34
DAR_060_03 A	45mm Water Rated Hinged Door DG	6EVanClr-12Ar-6Clr		3.65	0.40	0.40		#N/A	Viridian	Yes*	34
DAR_060_04 A	45mm Water Rated Hinged Door DG	6EVanGy-12Ar-6Clr		3.65	0.25	0.19		#N/A	Viridian	Yes*	34
DAR_060_05 A	45mm Water Rated Hinged Door DG	6EnTech-12Ar-6Clr		3.58	0.44	0.48		#N/A	Viridian	Yes*	34
DAR_060_06 A	45mm Water Rated Hinged Door DG	6EnTechGy-12Ar-6Clr		3.61	0.29	0.23		#N/A	Viridian	Yes*	34
DAR_060_07 A	45mm Water Rated Hinged Door DG	6SolTech-12Ar-6Clr		3.59	0.33	0.37		#N/A	Solos	Yes*	34
DAR_060_08 A	45mm Water Rated Hinged Door DG	6SolTechGy-12Ar-6Clr		3.60	0.22	0.18		#N/A	Solos	Yes*	34
DAR_060_09 A	45mm Water Rated Hinged Door DG	6PerformTech-12Ar-6Clr		3.41	0.25	0.45		#N/A	Viridian	Yes*	34
DAR_060_10 A	45mm Water Rated Hinged Door DG	6PerformTech-12Ar-6SupGy		3.41	0.23	0.04		#N/A	Viridian	Yes*	34
BAL40:
*6mm Tough minimum. Please refer to technical manual for FR rubber requirements
Sort By:	Window ID
Window ID	System Description	Glazing Code	Glazing Description	Uw	SHGC	Tvw	Air Inf	Thickness	Brand	BAL40	Rw	Price
#NAME?

Window ID	System Description	Glazing Code	Glazing Description	Uw	SHGC	Tvw	Air Inf	Thickness	Supplier	BAL40	Rw	Price
DAR_059_01 A	45mm Water Rated Hinged Door SG	638ComPlsGy		4.70	0.36	0.26		#N/A	Viridian		34
DAR_059_02 A	45mm Water Rated Hinged Door SG	638ComPlsNtl		4.71	0.37	0.40		#N/A	Viridian		34
DAR_059_03 A	45mm Water Rated Hinged Door SG	6mmClr		6.13	0.58	0.60		#N/A	[Generic]	Yes*	34
DAR_059_04 A	45mm Water Rated Hinged Door SG	6mmGy		6.13	0.42	0.28		#N/A	[Generic]	Yes*	34
DAR_059_05 A	45mm Water Rated Hinged Door SG	6EnTech		4.72	0.50	0.54		#N/A	Viridian	Yes*	34
DAR_059_06 A	45mm Water Rated Hinged Door SG	6EnTechGy		4.75	0.34	0.27		#N/A	Viridian	Yes*	34
DAR_059_07 A	45mm Water Rated Hinged Door SG	6SolTech		4.72	0.39	0.43		#N/A	Solos	Yes*	34
DAR_059_08 A	45mm Water Rated Hinged Door SG	6SolTechGy		4.74	0.27	0.21		#N/A	Solos	Yes*	34
DAR_059_09 A	45mm Water Rated Hinged Door SG	6mmEVanClr		4.83	0.46	0.46		#N/A	Viridian	Yes*	34
DAR_059_10 A	45mm Water Rated Hinged Door SG	6mmEVanGy		4.83	0.30	0.22		#N/A	Viridian	Yes*	34
DAR_060_01 A	45mm Water Rated Hinged Door DG	6Clr-12Ar-6Clr		4.13	0.50	0.52		#N/A	[Generic]	Yes*	34
DAR_060_02 A	45mm Water Rated Hinged Door DG	6Gy-12Ar-6Clr		4.13	0.33	0.24		#N/A	[Generic]	Yes*	34
DAR_060_03 A	45mm Water Rated Hinged Door DG	6EVanClr-12Ar-6Clr		3.65	0.40	0.40		#N/A	Viridian	Yes*	34
DAR_060_04 A	45mm Water Rated Hinged Door DG	6EVanGy-12Ar-6Clr		3.65	0.25	0.19		#N/A	Viridian	Yes*	34
DAR_060_05 A	45mm Water Rated Hinged Door DG	6EnTech-12Ar-6Clr		3.58	0.44	0.48		#N/A	Viridian	Yes*	34
DAR_060_06 A	45mm Water Rated Hinged Door DG	6EnTechGy-12Ar-6Clr		3.61	0.29	0.23		#N/A	Viridian	Yes*	34
DAR_060_07 A	45mm Water Rated Hinged Door DG	6SolTech-12Ar-6Clr		3.59	0.33	0.37		#N/A	Solos	Yes*	34
DAR_060_08 A	45mm Water Rated Hinged Door DG	6SolTechGy-12Ar-6Clr		3.60	0.22	0.18		#N/A	Solos	Yes*	34
DAR_060_09 A	45mm Water Rated Hinged Door DG	6PerformTech-12Ar-6Clr		3.41	0.25	0.45		#N/A	Viridian	Yes*	34
DAR_060_10 A	45mm Water Rated Hinged Door DG	6PerformTech-12Ar-6SupGy		3.41	0.23	0.04		#N/A	Viridian	Yes*	34
BAL40:
*6mm Tough minimum. Please refer to technical manual for FR rubber requirements
Sort By:	Window ID
Window ID	System Description	Glazing Code	Glazing Description	Uw	SHGC	Tvw	Air Inf	Thickness	Brand	BAL40	Rw	Price
#NAME?
