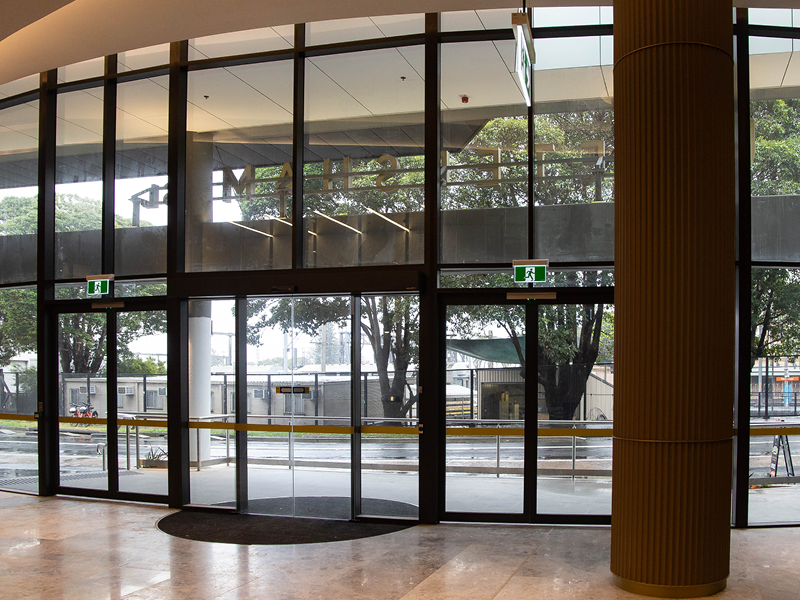

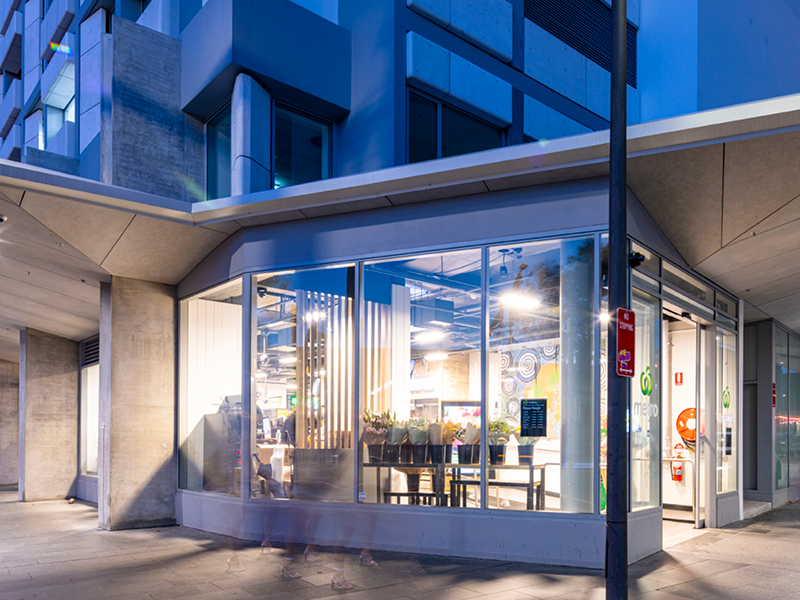

CityView 150mm Metric Commercial Frame

We’ve successfully transitioned our Centre Single Glazed (CSG) commercial framing from an imperial platform to a streamlined metric platform and with that comes a host of benefits designed to simplify fabrication, improve performance, and align with modern building demands.

The new metric framing system CSG will become the default option for all CityView systems. Common pocket shape with all other frame types means new clip in profiles for CSG compatibility.

TJ301 and other TJ equivalent Profiles will remain in stock. Cutting formula will be affected by the change from 44mm to 50mm cutting formula consistent with existing 150 x 50 Front Single Glazed.

Design Features:

  • null
    Supports Up to 12.38mm Glass Modern Building Demands. Wider pocket design accommodates thicker glass for enhanced thermal and acoustic performance.
  • null

    True Captive Glazing. Improves water and air tightness while simplifying gasket installation.

  • null
    Aligned with All CityView Systems. Perfectly integrates with our 150mm x 50mm CityView window and door systems for a consistent, cohesive look.
  • null

    Tested to Larger Sizes. Confidence in compliance and structural integrity – even on bigger spans.

  • null

    Improved Tooling & Tech Manuals. Updated technical guidance, and easier installation.

  • null

    Luminance Contrast Compliant. Meets latest accessibility and design regulations.

  • null
    Modern Metric Profile. Sleek 150mm profile removes the bulk of the old imperial system and matches modern building design.

Tested to AS2047

Under the Building Code of Australia, we are required to produce windows and doors that meet mandatory minimum specifications under Australian Standard (AS) 2047 – including AS1288.

Simulations of High Winds and Driving Rains

AS4420.2 Deflection Test – positive and negative wind pressures are applied to the face of the window to test the maximum deflection under wind load.
AS4420.5 Water Penetration Resistance Test – to verify that no water leaks through the window into the building.

Operating Force Requirement

AS4420.3 Operating Force Test – to verify that an opening sash is capable of opening and closing without undue effort.

Air Infiltration Pressure

AS4220.4 Air In filtration Test – the air leakage of a window is tested to ensure energy and acoustic efficiency.

Ultimate Strength Testing

AS4420.6 Ultimate Strength Test – negative and positive wind pressures are applied to the window to at least 1.5 times the design wind pressure to ensure it does not fail in unusual wind conditions.

Download CAD Drawings

Please note: file will be in .zip format.

About

CityView 150mm Metric Commercial Frame

We’ve successfully transitioned our Centre Single Glazed (CSG) commercial framing from an imperial platform to a streamlined metric platform and with that comes a host of benefits designed to simplify fabrication, improve performance, and align with modern building demands.

The new metric framing system CSG will become the default option for all CityView systems. Common pocket shape with all other frame types means new clip in profiles for CSG compatibility.

TJ301 and other TJ equivalent Profiles will remain in stock. Cutting formula will be affected by the change from 44mm to 50mm cutting formula consistent with existing 150 x 50 Front Single Glazed.

Design Features:

  • null
    Supports Up to 12.38mm Glass Modern Building Demands. Wider pocket design accommodates thicker glass for enhanced thermal and acoustic performance.
  • null

    True Captive Glazing. Improves water and air tightness while simplifying gasket installation.

  • null
    Aligned with All CityView Systems. Perfectly integrates with our 150mm x 50mm CityView window and door systems for a consistent, cohesive look.
  • null

    Tested to Larger Sizes. Confidence in compliance and structural integrity – even on bigger spans.

  • null

    Improved Tooling & Tech Manuals. Updated technical guidance, and easier installation.

  • null

    Luminance Contrast Compliant. Meets latest accessibility and design regulations.

  • null
    Modern Metric Profile. Sleek 150mm profile removes the bulk of the old imperial system and matches modern building design.
Testing

Tested to AS2047

Under the Building Code of Australia, we are required to produce windows and doors that meet mandatory minimum specifications under Australian Standard (AS) 2047 – including AS1288.

Simulations of High Winds and Driving Rains

AS4420.2 Deflection Test – positive and negative wind pressures are applied to the face of the window to test the maximum deflection under wind load.
AS4420.5 Water Penetration Resistance Test – to verify that no water leaks through the window into the building.

Operating Force Requirement

AS4420.3 Operating Force Test – to verify that an opening sash is capable of opening and closing without undue effort.

Air Infiltration Pressure

AS4220.4 Air In filtration Test – the air leakage of a window is tested to ensure energy and acoustic efficiency.

Ultimate Strength Testing

AS4420.6 Ultimate Strength Test – negative and positive wind pressures are applied to the window to at least 1.5 times the design wind pressure to ensure it does not fail in unusual wind conditions.

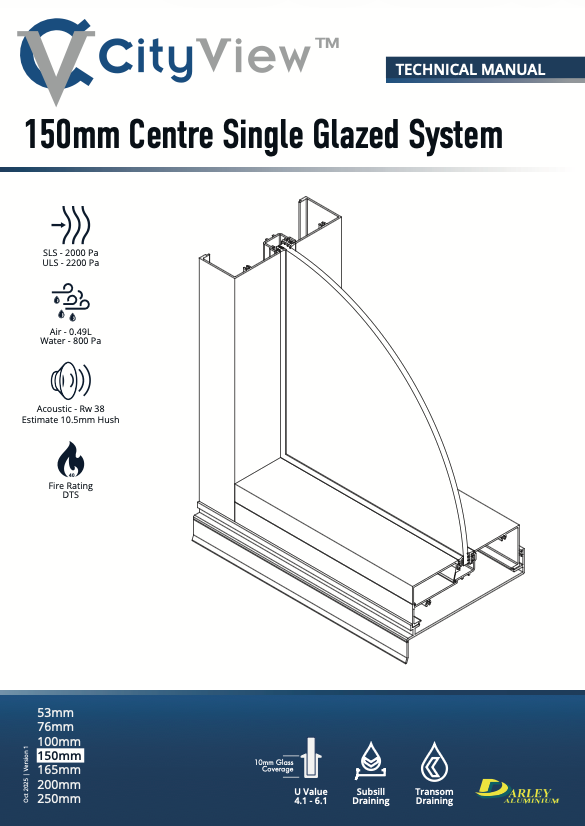

Technical Manuals
CAD Drawings

Download CAD Drawings

Please note: file will be in .zip format.

Download the CityViewâ„¢ Catalogue

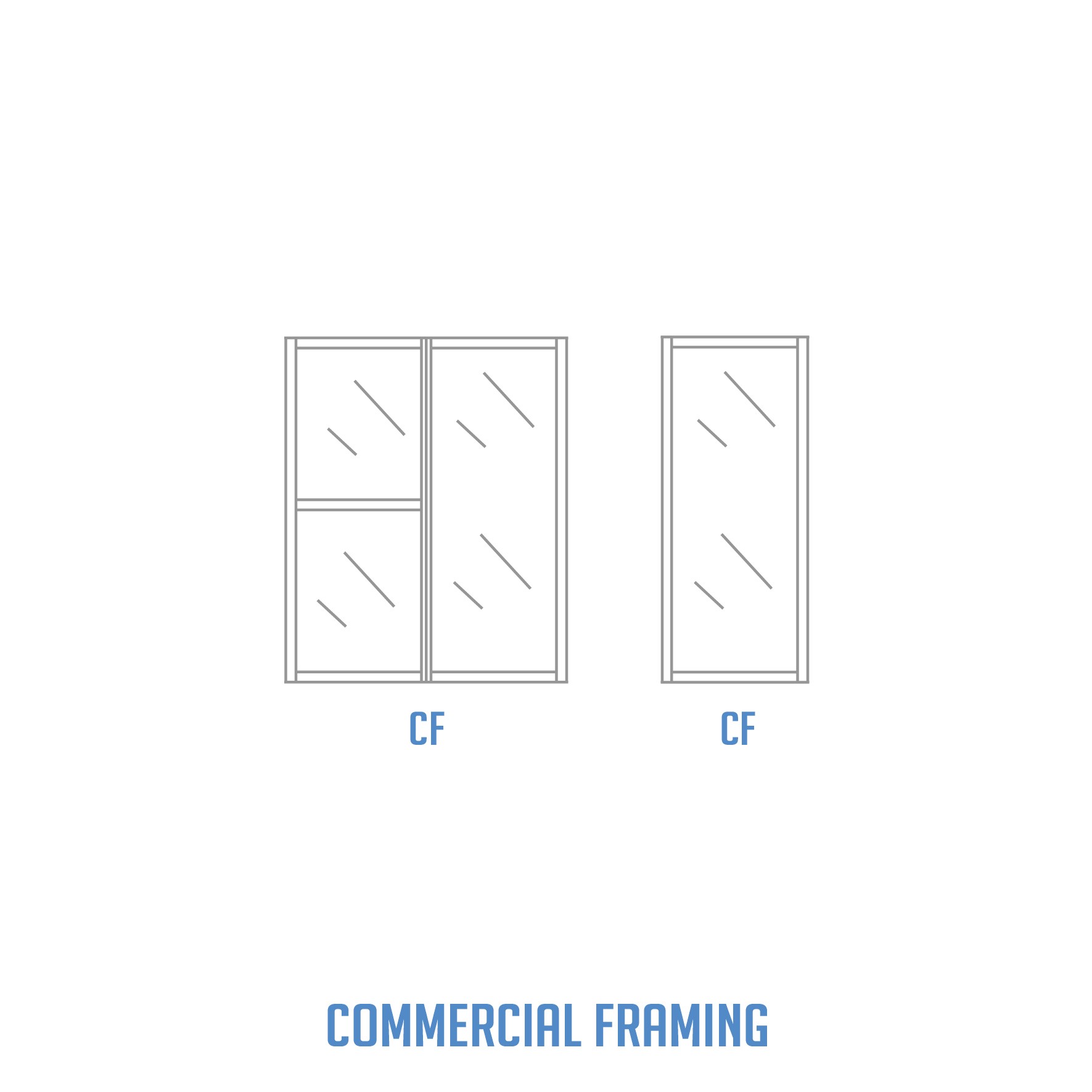

Specifications

SystemMaximum Height per PanelMaximum Width per PanelGlass ThicknessTest Report No.Water (Pa)SLS (Pa)ULS (Pa)
150mm Centre (CSG)3130mm1200mm6–12.38AZT0486.2460012003500
