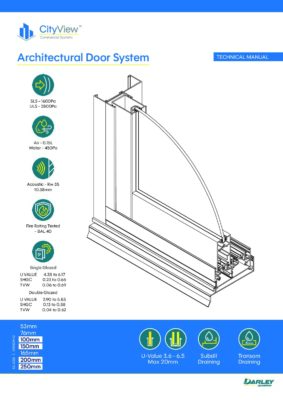

Technical Manuals
Cutting Sheet
CAD Drawings

About CityView Architectural Sliding Door

The CityView Architectural Sliding Door is an ideal choice for high-end commercial developments and any other projects where high performance is required. A stylish, modern high-performance product, the CityView Apartment structural design allows for extra large door panels and glass thickness of up to 30mm.

Designed with Australian climatic conditions in mind, the CityView Architectural Sliding Door has been tested and exceeds Australian Standard AS2047.

Design Features:

Accepts glass thickness from 6mm-24mm
Compatible with other Darley Aluminium Commercial and Residential Systems
Range of heavy-duty mullion options for tall framing and high wind areas
Unique “Slide-in-Jamb” design results in minimal tooling required
Door panels can slide internally or externally
Maximum panel weight 160kg
Maximum panel size 2700 mm high x 1500 mm wide subject to complying with the appropriate glazing standard and design wind load requirements.

Multiple screening options available for internal or external screening
Custom made Anti-Lift and Filler blocks for quick installation
Range of roller options to accommodate heavy panel weights
Pre-punched Sill requires no fabrication
Tested and approved by and independent NATA accredited laboratory
NFRC Energy rated

Tested to AS2047

Under the Building Code of Australia, we are required to produce windows and doors that meet mandatory minimum specifications under Australian Standard (AS) 2047 – including AS1288.

Simulations of High Winds and Driving Rains

AS4420.2 Deflection Test – positive and negative wind pressures are applied to the face of the window to test the maximum deflection under wind load.
AS4420.5 Water Penetration Resistance Test – to verify that no water leaks through the window into the building.

Operating Force Requirement

AS4420.3 Operating Force Test – to verify that an opening sash is capable of opening and closing without undue effort.

Air Infiltration Pressure

AS4220.4 Air In filtration Test – the air leakage of a window is tested to ensure energy and acoustic efficiency.

Ultimate Strength Testing

AS4420.6 Ultimate Strength Test – negative and positive wind pressures are applied to the window to at least 1.5 times the design wind pressure to ensure it does not fail in unusual wind conditions.

CityView Cutting Sheet

Download CAD Drawings

Please note: file will be in .zip format.

About

About CityView Architectural Sliding Door

The CityView Architectural Sliding Door is an ideal choice for high-end commercial developments and any other projects where high performance is required. A stylish, modern high-performance product, the CityView Apartment structural design allows for extra large door panels and glass thickness of up to 30mm.

Designed with Australian climatic conditions in mind, the CityView Architectural Sliding Door has been tested and exceeds Australian Standard AS2047.

Design Features:

Accepts glass thickness from 6mm-24mm
Compatible with other Darley Aluminium Commercial and Residential Systems
Range of heavy-duty mullion options for tall framing and high wind areas
Unique “Slide-in-Jamb” design results in minimal tooling required
Door panels can slide internally or externally
Maximum panel weight 160kg
Maximum panel size 2700 mm high x 1500 mm wide subject to complying with the appropriate glazing standard and design wind load requirements.

Multiple screening options available for internal or external screening
Custom made Anti-Lift and Filler blocks for quick installation
Range of roller options to accommodate heavy panel weights
Pre-punched Sill requires no fabrication
Tested and approved by and independent NATA accredited laboratory
NFRC Energy rated

Wers Ratings

Testing

Tested to AS2047

Under the Building Code of Australia, we are required to produce windows and doors that meet mandatory minimum specifications under Australian Standard (AS) 2047 – including AS1288.

Simulations of High Winds and Driving Rains

AS4420.2 Deflection Test – positive and negative wind pressures are applied to the face of the window to test the maximum deflection under wind load.
AS4420.5 Water Penetration Resistance Test – to verify that no water leaks through the window into the building.

Operating Force Requirement

AS4420.3 Operating Force Test – to verify that an opening sash is capable of opening and closing without undue effort.

Air Infiltration Pressure

AS4220.4 Air In filtration Test – the air leakage of a window is tested to ensure energy and acoustic efficiency.

Ultimate Strength Testing

AS4420.6 Ultimate Strength Test – negative and positive wind pressures are applied to the window to at least 1.5 times the design wind pressure to ensure it does not fail in unusual wind conditions.

Technical Manuals

Cutting Sheet

CityView Cutting Sheet

CAD Drawings

Download CAD Drawings

Please note: file will be in .zip format.

Download the CityView™ Catalogue

Specifications

System	Maximum weight per panel	Maximum hieight	Maxiumim Width	Glass Thickness	Test Report No.	Water Rating (Pa)	Structural (Pa)	Ultimate (Pa)
Architectural Slider	200kg	3200mm	1500mm	6mm – 30mm	AZT0144.22	450	1,600	2,800
Architectural Slider (Flush Sill)	200kg	3200mm	1500mm	6mm – 30mm	KSTL025	300	1,800	4,500
Architectural Stacker	200kg	3200mm	1500mm	6mm – 30mm	AZT0137.17	420	1,487	2,300
HD High Sill Architectural Slider	200kg	3200mm	1500mm	6mm – 30mm	AZT0060.13	700	1,890	2,700
HD High Sill Architectural Stacker	200kg	3200mm	1500mm	6mm – 30mm	AZT0095.13	600	1890	2700

Commercial Hardware

Find Out More

Window ID	System	Glazing	Cooling Stars	Heating Stars	Cool %	Heat %	Uw	SHGC	Tvw	Air Inf
DAR-001-01	“Cityview” Apartment Door-Single Glazed	6Clr	1	2.5	21%	17%	6.2	0.66	0.7	1.45
DAR-001-02	“Cityview” Apartment Door-Single Glazed	6TS21	3.5	1.5	55%	5%	5.4	0.25	0.16	1.45
DAR-001-03	“Cityview” Apartment Door-Single Glazed	6.38CPNtrl	3	3	49%	28%	4.4	0.41	0.47	1.45
DAR-001-04	“Cityview” Apartment Door-Single Glazed	6.38CPGn	3	3	49%	27%	4.4	0.41	0.56	1.45
DAR-001-05	“Cityview” Apartment Door-Single Glazed	6.38CPGy	3	3	50%	27%	4.4	0.4	0.31	1.45
DAR-001-06	“Cityview” Apartment Door-Single Glazed	6Gy	2	2	37%	8%	6.2	0.46	0.35	1.45
DAR-001-07	“Cityview” Apartment Door-Single Glazed	6EcAdGy	3.5	2.5	54%	21%	4.6	0.33	0.25	1.45
DAR-001-08	“Cityview” Apartment Door-Single Glazed	6SE	3	3	48%	28%	4.5	0.42	0.47	1.45
DAR-001-09	“Cityview” Apartment Door-Single Glazed	6SEGy	4	2.5	57%	20%	4.5	0.29	0.24	1.45
DAR-001-10	“Cityview” Apartment Door-Single Glazed	10.38GyLam	2	2	36%	9%	6.2	0.48	0.33	1.45
DAR-001-11	“Cityview” Apartment Door-Single Glazed	10.38CPClr	2.5	3.5	41%	34%	4.4	0.52	0.63	1.45
DAR-001-12	“Cityview” Apartment Door-Single Glazed	10.38CPGy	3.5	3	51%	26%	4.4	0.38	0.3	1.45
DAR-001-13	“Cityview” Apartment Door-Single Glazed	10.38CPNtl	3	3	49%	28%	4.4	0.41	0.49	1.45
DAR-001-14	“Cityview” Apartment Door-Single Glazed	10.38CPGn	3.5	3	53%	25%	4.4	0.35	0.51	1.45
DAR-001-15	“Cityview” Apartment Door-Single Glazed	6.38CPClr	2.5	3	38%	34%	4.5	0.55	0.65	1.45
DAR-001-16	“Cityview” Apartment Door-Single Glazed	6AzTS21	4	1.5	56%	4%	5.5	0.24	0.12	1.45
DAR-001-17	“Cityview” Apartment Door-Single Glazed	6EVSpGn	3.5	2.5	55%	19%	4.7	0.31	0.39	1.45
DAR-001-18	“Cityview” Apartment Door-Single Glazed	6SpGy	3	0	49%	-2%	6.2	0.29	0.07	1.45
DAR-001-19	“Cityview” Apartment Door-Single Glazed	6EVBGn	3.5		51%	23%	4.6	0.37	0.45	1.45
DAR-001-20	“Cityview” Apartment Door-Single Glazed	6EVAB	4	2.5	56%	18%	4.6	0.3	0.31	1.45
DAR-011-01	"Cityview" Apartment Door - Double Glazed	6Clr/12/6Clr	2.5	4	42%	39%	4	0.54	0.58	1.3
DAR-011-02	"Cityview" Apartment Door - Double Glazed	6Ins/12/6EA	3	4.5	47%	44%	3.5	0.51	0.53	1.3
DAR-011-03	"Cityview" Apartment Door - Double Glazed	6InsEG/12/6Clr	4	3	58%	27%	4	0.31	0.43	1.3
DAR-011-04	"Cityview" Apartment Door - Double Glazed	6InsEG/12/6EA	4.5	3.5	63%	31%	3.5	0.27	0.4	1.3
DAR-011-05	"Cityview" Apartment Door - Double Glazed	6TS21/12/6Clr	5.5	2.5	69%	19%	3.8	0.16	0.12	1.3
DAR-011-06	"Cityview" Apartment Door - Double Glazed	6TS21/12/6EA	5.5	3	73%	21%	3.4	0.14	0.11	1.3
DAR-011-07	"Cityview" Apartment Door - Double Glazed	6LE/12/6Clr	3	4.5	49%	42%	3.5	0.47	0.53	1.3
DAR-011-08	"Cityview" Apartment Door - Double Glazed	6PTech/12/6Clr	5	3.5	65%	31%	3.3	0.25	0.42	1.3
DAR-011-09	"Cityview" Apartment Door - Double Glazed	6PTech/12Ar/6Clr	5	3.5	66%	33%	3.1	0.25	0.42	1.3
DAR-011-10	"Cityview" Apartment Door - Double Glazed	6PTech/12Ar/6ET	5	3.5	67%	33%	3.1	0.24	0.39	1.3
DAR-011-11	"Cityview" Apartment Door - Double Glazed	6PTech/12Ar/6SpGy	5	3.5	68%	32%	3.1	0.23	0.04	1.3
DAR-011-12	"Cityview" Apartment Door - Double Glazed	6Clr/12Ar/10.38ClrLam	2.5	4	44%	40%	3.9	0.52	0.56	1.3
DAR-011-13	"Cityview" Apartment Door - Double Glazed	6SolT/6/6Clr	3.5	3.5	55%	31%	3.9	0.36	0.41	1.3
DAR-011-14	"Cityview" Apartment Door - Double Glazed	6Gy/12Ar/6Gy	4	3.5	58%	28%	3.9	0.31	0.13	1.3
DAR-011-15	"Cityview" Apartment Door - Double Glazed	6Gy/12Ar/6Clr	4	3.5	56%	31%	3.9	0.35	0.27	1.3
DAR-011-16	"Cityview" Apartment Door - Double Glazed	6SpGy/12Ar/6Clr	5	2.5	68%	19%	3.9	0.17	0.06	1.3
DAR-011-17	"Cityview" Apartment Door - Double Glazed	6EoGy/12/6Clr	3.5	3.5	55%	30%	4	0.36	0.29	1.3
DAR-011-18	"Cityview" Apartment Door - Double Glazed	6EuGy/12/6ET	4	3.5	60%	34%	3.5	0.32	0.27	1.3
DAR-011-19	"Cityview" Apartment Door - Double Glazed	6.5FGI Sil/12Ar/6FGI OE Acu	3.5	4.5	55%	43%	3.1	0.42	0.57	1.3
DAR-011-20	"Cityview" Apartment Door - Double Glazed	6.38FGI Ptk Wt /12Ar/6FGI OE Prv	4.5	4	60%	39%	3.1	0.34	0.43	1.3
DAR-011-21	"Cityview" Apartment Door - Double Glazed	6FGI Env Clr / 12Ar / 6FGI OE Clr	3.5	4.5	53%	44%	3.1	0.44	0.57	1.3
DAR-011-22	"Cityview" Apartment Door - Double Glazed	6FGI Env Gy / 12Ar / 6FGI OE Gy	5	3.5	65%	34%	3.1	0.26	0.27	1.3

Window ID	System	Glazing	Cooling Stars	Heating Stars	Cool %	Heat %	Uw	SHGC	Tvw	Air Inf
DAR-001-01	“Cityview” Apartment Door-Single Glazed	6Clr	1	2.5	21%	17%	6.2	0.66	0.7	1.45
DAR-001-02	“Cityview” Apartment Door-Single Glazed	6TS21	3.5	1.5	55%	5%	5.4	0.25	0.16	1.45
DAR-001-03	“Cityview” Apartment Door-Single Glazed	6.38CPNtrl	3	3	49%	28%	4.4	0.41	0.47	1.45
DAR-001-04	“Cityview” Apartment Door-Single Glazed	6.38CPGn	3	3	49%	27%	4.4	0.41	0.56	1.45
DAR-001-05	“Cityview” Apartment Door-Single Glazed	6.38CPGy	3	3	50%	27%	4.4	0.4	0.31	1.45
DAR-001-06	“Cityview” Apartment Door-Single Glazed	6Gy	2	2	37%	8%	6.2	0.46	0.35	1.45
DAR-001-07	“Cityview” Apartment Door-Single Glazed	6EcAdGy	3.5	2.5	54%	21%	4.6	0.33	0.25	1.45
DAR-001-08	“Cityview” Apartment Door-Single Glazed	6SE	3	3	48%	28%	4.5	0.42	0.47	1.45
DAR-001-09	“Cityview” Apartment Door-Single Glazed	6SEGy	4	2.5	57%	20%	4.5	0.29	0.24	1.45
DAR-001-10	“Cityview” Apartment Door-Single Glazed	10.38GyLam	2	2	36%	9%	6.2	0.48	0.33	1.45
DAR-001-11	“Cityview” Apartment Door-Single Glazed	10.38CPClr	2.5	3.5	41%	34%	4.4	0.52	0.63	1.45
DAR-001-12	“Cityview” Apartment Door-Single Glazed	10.38CPGy	3.5	3	51%	26%	4.4	0.38	0.3	1.45
DAR-001-13	“Cityview” Apartment Door-Single Glazed	10.38CPNtl	3	3	49%	28%	4.4	0.41	0.49	1.45
DAR-001-14	“Cityview” Apartment Door-Single Glazed	10.38CPGn	3.5	3	53%	25%	4.4	0.35	0.51	1.45
DAR-001-15	“Cityview” Apartment Door-Single Glazed	6.38CPClr	2.5	3	38%	34%	4.5	0.55	0.65	1.45
DAR-001-16	“Cityview” Apartment Door-Single Glazed	6AzTS21	4	1.5	56%	4%	5.5	0.24	0.12	1.45
DAR-001-17	“Cityview” Apartment Door-Single Glazed	6EVSpGn	3.5	2.5	55%	19%	4.7	0.31	0.39	1.45
DAR-001-18	“Cityview” Apartment Door-Single Glazed	6SpGy	3	0	49%	-2%	6.2	0.29	0.07	1.45
DAR-001-19	“Cityview” Apartment Door-Single Glazed	6EVBGn	3.5		51%	23%	4.6	0.37	0.45	1.45
DAR-001-20	“Cityview” Apartment Door-Single Glazed	6EVAB	4	2.5	56%	18%	4.6	0.3	0.31	1.45
DAR-011-01	"Cityview" Apartment Door - Double Glazed	6Clr/12/6Clr	2.5	4	42%	39%	4	0.54	0.58	1.3
DAR-011-02	"Cityview" Apartment Door - Double Glazed	6Ins/12/6EA	3	4.5	47%	44%	3.5	0.51	0.53	1.3
DAR-011-03	"Cityview" Apartment Door - Double Glazed	6InsEG/12/6Clr	4	3	58%	27%	4	0.31	0.43	1.3
DAR-011-04	"Cityview" Apartment Door - Double Glazed	6InsEG/12/6EA	4.5	3.5	63%	31%	3.5	0.27	0.4	1.3
DAR-011-05	"Cityview" Apartment Door - Double Glazed	6TS21/12/6Clr	5.5	2.5	69%	19%	3.8	0.16	0.12	1.3
DAR-011-06	"Cityview" Apartment Door - Double Glazed	6TS21/12/6EA	5.5	3	73%	21%	3.4	0.14	0.11	1.3
DAR-011-07	"Cityview" Apartment Door - Double Glazed	6LE/12/6Clr	3	4.5	49%	42%	3.5	0.47	0.53	1.3
DAR-011-08	"Cityview" Apartment Door - Double Glazed	6PTech/12/6Clr	5	3.5	65%	31%	3.3	0.25	0.42	1.3
DAR-011-09	"Cityview" Apartment Door - Double Glazed	6PTech/12Ar/6Clr	5	3.5	66%	33%	3.1	0.25	0.42	1.3
DAR-011-10	"Cityview" Apartment Door - Double Glazed	6PTech/12Ar/6ET	5	3.5	67%	33%	3.1	0.24	0.39	1.3
DAR-011-11	"Cityview" Apartment Door - Double Glazed	6PTech/12Ar/6SpGy	5	3.5	68%	32%	3.1	0.23	0.04	1.3
DAR-011-12	"Cityview" Apartment Door - Double Glazed	6Clr/12Ar/10.38ClrLam	2.5	4	44%	40%	3.9	0.52	0.56	1.3
DAR-011-13	"Cityview" Apartment Door - Double Glazed	6SolT/6/6Clr	3.5	3.5	55%	31%	3.9	0.36	0.41	1.3
DAR-011-14	"Cityview" Apartment Door - Double Glazed	6Gy/12Ar/6Gy	4	3.5	58%	28%	3.9	0.31	0.13	1.3
DAR-011-15	"Cityview" Apartment Door - Double Glazed	6Gy/12Ar/6Clr	4	3.5	56%	31%	3.9	0.35	0.27	1.3
DAR-011-16	"Cityview" Apartment Door - Double Glazed	6SpGy/12Ar/6Clr	5	2.5	68%	19%	3.9	0.17	0.06	1.3
DAR-011-17	"Cityview" Apartment Door - Double Glazed	6EoGy/12/6Clr	3.5	3.5	55%	30%	4	0.36	0.29	1.3
DAR-011-18	"Cityview" Apartment Door - Double Glazed	6EuGy/12/6ET	4	3.5	60%	34%	3.5	0.32	0.27	1.3
DAR-011-19	"Cityview" Apartment Door - Double Glazed	6.5FGI Sil/12Ar/6FGI OE Acu	3.5	4.5	55%	43%	3.1	0.42	0.57	1.3
DAR-011-20	"Cityview" Apartment Door - Double Glazed	6.38FGI Ptk Wt /12Ar/6FGI OE Prv	4.5	4	60%	39%	3.1	0.34	0.43	1.3
DAR-011-21	"Cityview" Apartment Door - Double Glazed	6FGI Env Clr / 12Ar / 6FGI OE Clr	3.5	4.5	53%	44%	3.1	0.44	0.57	1.3
DAR-011-22	"Cityview" Apartment Door - Double Glazed	6FGI Env Gy / 12Ar / 6FGI OE Gy	5	3.5	65%	34%	3.1	0.26	0.27	1.3
