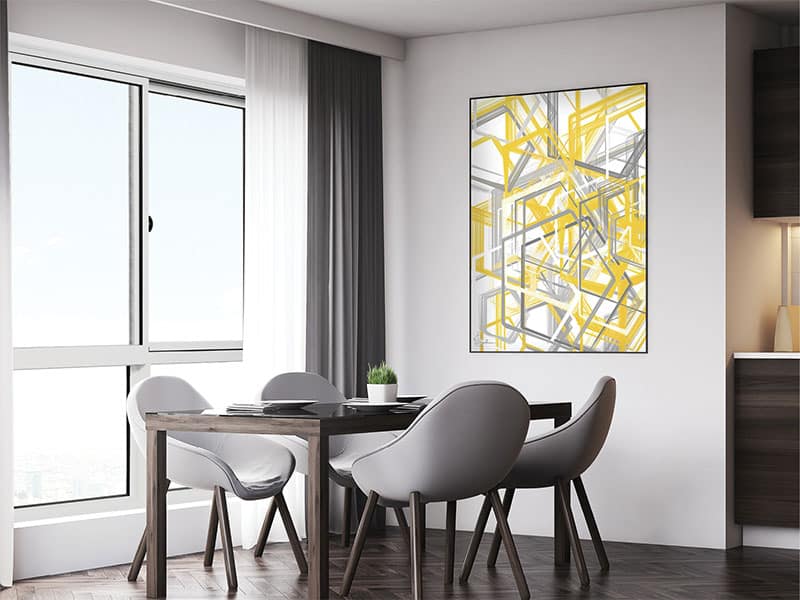

About KlassicView 76mm Sliding Window

The KlassicView 76mm Sliding Window has been designed to deliver high strength and performance. With an inbuilt drain flap for protection against weather and air interference, the KlassicView 76mm sliding window accepts a sash weight of up to 80kgs. It also comes with a range of interlocks to build a high-performance window.
Designed for Australian climatic conditions, the KlassicView 76mm sliding window has been tested and exceeds Australian Standard AS2047

Design Features:

Accepts glass thickness from 4mm to 10.38mm single glazed glass and 16 & 20mm double glazed glass.
Mullion centre locking system
Sash weight up to 80Kgs

Frame Height up to 1650mm
Can be attached to the Fixed window system to have lowlights or highlights or both
A range of interlocks available to build a high performance window

WERS Ratings

The Window Energy Rating Scheme (WERS) is accredited by the AFRC – which means that WERS ratings are compliant with the NCC.

Reports are prescribed both the window performance for total window U Value (Uw) and total window Solar Heat Gain Coefficient (SHGCw).

U-value

U-value measures how well a product prevents heat from escaping.

It is a measure of the rate of non-solar heat loss or gain through a material or assembly.

U-value ratings generally fall between 2.0-10.0 W/m2.K for Australian products. The lower the U-value, the greater a window’s resistance to heat and cold flow and the better its insulating value.

Solar Heat Gain Co-efficient (SHGC)

SHGC measures how well a product blocks heat caused by sunlight. SHGC is expressed as a number between 0 and 1. The lower a window’s SHGC, the less solar heat it transmits.

Tested to AS2047

Under the Building Code of Australia, we are required to produce windows and doors that meet mandatory minimum specifications under Australian Standard (AS) 2047 – including AS1288.

Simulations of High Winds and Driving Rains

AS4420.2 Deflection Test – positive and negative wind pressures are applied to the face of the window to test the maximum deflection under wind load.
AS4420.5 Water Penetration Resistance Test – to verify that no water leaks through the window into the building.

Operating Force Requirement

AS4420.3 Operating Force Test – to verify that an opening sash is capable of opening and closing without undue effort.

Air Infiltration Pressure

AS4220.4 Air In filtration Test – the air leakage of a window is tested to ensure energy and acoustic efficiency.

Ultimate Strength Testing

AS4420.6 Ultimate Strength Test – negative and positive wind pressures are applied to the window to at least 1.5 times the design wind pressure to ensure it does not fail in unusual wind conditions.

Download CAD Drawings

Please note: file will be in .zip format.

About

About KlassicView 76mm Sliding Window

The KlassicView 76mm Sliding Window has been designed to deliver high strength and performance. With an inbuilt drain flap for protection against weather and air interference, the KlassicView 76mm sliding window accepts a sash weight of up to 80kgs. It also comes with a range of interlocks to build a high-performance window.
Designed for Australian climatic conditions, the KlassicView 76mm sliding window has been tested and exceeds Australian Standard AS2047

Design Features:

Accepts glass thickness from 4mm to 10.38mm single glazed glass and 16 & 20mm double glazed glass.
Mullion centre locking system
Sash weight up to 80Kgs

Frame Height up to 1650mm
Can be attached to the Fixed window system to have lowlights or highlights or both
A range of interlocks available to build a high performance window

Wers Ratings

WERS Ratings

The Window Energy Rating Scheme (WERS) is accredited by the AFRC – which means that WERS ratings are compliant with the NCC.

Reports are prescribed both the window performance for total window U Value (Uw) and total window Solar Heat Gain Coefficient (SHGCw).

U-value

U-value measures how well a product prevents heat from escaping.

It is a measure of the rate of non-solar heat loss or gain through a material or assembly.

U-value ratings generally fall between 2.0-10.0 W/m2.K for Australian products. The lower the U-value, the greater a window’s resistance to heat and cold flow and the better its insulating value.

Solar Heat Gain Co-efficient (SHGC)

SHGC measures how well a product blocks heat caused by sunlight. SHGC is expressed as a number between 0 and 1. The lower a window’s SHGC, the less solar heat it transmits.

Testing

Tested to AS2047

Under the Building Code of Australia, we are required to produce windows and doors that meet mandatory minimum specifications under Australian Standard (AS) 2047 – including AS1288.

Simulations of High Winds and Driving Rains

AS4420.2 Deflection Test – positive and negative wind pressures are applied to the face of the window to test the maximum deflection under wind load.
AS4420.5 Water Penetration Resistance Test – to verify that no water leaks through the window into the building.

Operating Force Requirement

AS4420.3 Operating Force Test – to verify that an opening sash is capable of opening and closing without undue effort.

Air Infiltration Pressure

AS4220.4 Air In filtration Test – the air leakage of a window is tested to ensure energy and acoustic efficiency.

Ultimate Strength Testing

AS4420.6 Ultimate Strength Test – negative and positive wind pressures are applied to the window to at least 1.5 times the design wind pressure to ensure it does not fail in unusual wind conditions.

Technical Manuals

CAD Drawings

Download CAD Drawings

Please note: file will be in .zip format.

Download Brochure

KlassicView Sliding Window Video

Specifications

System	Maximum weight per panel	Maximum height per panel	Maxiumim Width per panel	Glass Thickness	Test Report No.	Water Rating (Pa)	Structural (Pa)	Ultimate (Pa)
Klassicview 76mm Sliding Window	80kgs	1650mm	1350mm	Single Glazed=10.38mm	AZT0491.19	300	2000	4000
				Double Glazed=20mm

Residential Hardware

Find Out More

Window ID	System	Glazing	Cooling Stars	Heating Stars	Cool %	Heat %	Uw	SHGC	Tvw	Air Inf
DAR-029-01	Klassic View 76mm Sliding Window - Single Glazed	6.38CPClr	2	3	38%	27%	4.8	0.54	0.62	3.07
DAR-029-02	Klassic View 76mm Sliding Window - Single Glazed	10.38CPClr	2.5	3	41%	27%	4.8	0.5	0.6	3.07
DAR-029-03	Klassic View 76mm Sliding Window - Single Glazed	10.38CPGy	3	2.5	50%	20%	4.8	0.37	0.29	3.07
DAR-029-04	Klassic View 76mm Sliding Window - Single Glazed	10.38ClrLam	1.5	2	27%	11%	6.3	0.58	0.65	3.07
DAR-029-05	Klassic View 76mm Sliding Window - Single Glazed	10.38GyLam	2	1.5	37%	5%	6.3	0.46	0.31	3.07
DAR-029-06	Klassic View 76mm Sliding Window - Single Glazed	10.38EVGy	3.5	2.5	53%	14%	4.9	0.32	0.24	3.07
DAR-029-07	Klassic View 76mm Sliding Window - Single Glazed	10.38EVSGn	3.5	2.5	54%	16%	4.8	0.31	0.45	3.07
DAR-029-08	Klassic View 76mm Sliding Window - Single Glazed	10.38VLamSGn	2.5	1.5	40%	1%	6.3	0.4	0.49	3.07
DAR-029-09	Klassic View 76mm Sliding Window - Single Glazed	6.38ClrLam	1	2	22%	11%	6.4	0.63	0.67	3.07
DAR-029-10	Klassic View 76mm Sliding Window - Single Glazed	6.38CPGy	3	2.5	48%	20%	4.8	0.4	0.29	3.07
DAR-029-11	Klassic View 76mm Sliding Window - Single Glazed	6.38CPNtl	3	2.5	47%	20%	4.9	0.41	0.45	3.07
DAR-029-12	Klassic View 76mm Sliding Window - Single Glazed	6.38CPGn	3	2.5	48%	20%	4.9	0.4	0.53	3.07
DAR-029-13	Klassic View 76mm Sliding Window - Single Glazed	6.38TransLam	3	0	45%	-5%	6.4	0.33	0.25	3.07
DAR-029-14	Klassic View 76mm Sliding Window - Single Glazed	6.38GyLam	2	1.5	34%	4%	6.4	0.48	0.32	3.07
DAR-029-15	Klassic View 76mm Sliding Window - Single Glazed	6EVGy	3.5	2	52%	14%	5	0.33	0.24	3.07
DAR-029-16	Klassic View 76mm Sliding Window - Single Glazed	6AzTS21	3.5	0	54%	-2%	5.8	0.24	0.12	3.07
DAR-029-17	Klassic View 76mm Sliding Window - Single Glazed	6EVBlGn	3	2.5	49%	16%	5	0.36	0.43	3.07
DAR-029-18	Klassic View 76mm Sliding Window - Single Glazed	6EVSpGn	3.5	2	53%	12%	5	0.3	0.37	3.07
DAR-029-19	Klassic View 76mm Sliding Window - Single Glazed	6EVClr	2.5	3	40%	23%	5	0.5	0.52	3.07
DAR-029-20	Klassic View 76mm Sliding Window - Single Glazed	6ET	2	3	37%	28%	4.9	0.55	0.62	3.07
DAR-029-21	Klassic View 76mm Sliding Window - Single Glazed	6.38SnClr	2.5	2.5	42%	19%	5.1	0.46	0.51	3.07
DAR-029-22	Klassic View 76mm Sliding Window - Single Glazed	6.38SnGy	3	2	49%	13%	5.1	0.35	0.24	3.07
DAR-029-23	Klassic View 76mm Sliding Window - Single Glazed	6SnClr	2.5	2.5	41%	19%	5.2	0.47	0.51	3.07
DAR-029-24	Klassic View 76mm Sliding Window - Single Glazed	5Clr	1	2	20%	11%	6.5	0.65	0.67	3.07
DAR-029-25	Klassic View 76mm Sliding Window - Single Glazed	5Gy	2	1.5	34%	3%	6.5	0.48	0.36	3.07
DAR-029-26	Klassic View 76mm Sliding Window - Single Glazed	5SpGy	3	0	46%	-7%	6.5	0.3	0.09	3.07
DAR-029-27	Klassic View 76mm Sliding Window - Single Glazed	4Clr	1	2	18%	11%	6.5	0.66	0.68	3.07
DAR-029-28	Klassic View 76mm Sliding Window - Single Glazed	4Gy	1.5	1.5	31%	5%	6.5	0.52	0.42	3.07
DAR-029-29	Klassic View 76mm Sliding Window - Single Glazed	4SnClr	2.5	2.5	40%	19%	5.3	0.48	0.52	3.07
DAR-030-01	Klassic View 76mm Sliding Window - Double Glazed	4Clr/8/4Clr	2	4	36%	36%	4.3	0.59	0.61	3.07
DAR-030-02	Klassic View 76mm Sliding Window - Double Glazed	4Clr/8/4ET	2.5	4	42%	40%	3.8	0.55	0.56	3.07
DAR-030-03	Klassic View 76mm Sliding Window - Double Glazed	6.38CPClr/6/4Clr	3	3.5	46%	35%	4	0.48	0.56	3.07
DAR-030-04	Klassic View 76mm Sliding Window - Double Glazed	6.38CPGy/6/4Clr	3.5	3	55%	27%	4	0.35	0.26	3.07
DAR-030-05	Klassic View 76mm Sliding Window - Double Glazed	6.38CPNtl/6/4Clr	3.5	3	54%	28%	4	0.36	0.4	3.07
DAR-030-06	Klassic View 76mm Sliding Window - Double Glazed	6TS21/6/4Clr	4.5	2	64%	14%	4.3	0.2	0.14	3.07
DAR-030-07	Klassic View 76mm Sliding Window - Double Glazed	6TS21/6/4ET	5	2.5	66%	16%	4	0.18	0.13	3.07
DAR-030-08	Klassic View 76mm Sliding Window - Double Glazed	6EVGy/6/4Clr	4	3	59%	23%	4.1	0.29	0.22	3.07
DAR-030-09	Klassic View 76mm Sliding Window - Double Glazed	6SGn/6/4Clr	3.5	2.5	54%	21%	4.4	0.34	0.45	3.07
DAR-030-10	Klassic View 76mm Sliding Window - Double Glazed	5Clr/6/5Clr	2	3.5	38%	33%	4.5	0.56	0.6	3.07
DAR-030-11	Klassic View 76mm Sliding Window - Double Glazed	4SnClr/8/4Clr	3.5	3.5	51%	32%	4	0.42	0.47	3.07
DAR-030-12	Klassic View 76mm Sliding Window - Double Glazed	4SpGn/8/4ET	4	3	57%	28%	3.9	0.33	0.45	3.07
DAR-030-13	Klassic View 76mm Sliding Window - Double Glazed	4FGI Mat/8Ar/6FGI OE Prv	3	4.5	49%	42%	3.4	0.48	0.61	3.07
DAR-030-14	Klassic View 76mm Sliding Window - Double Glazed	4FGI Env Clr/8Ar/4FGI OE Clr	3	4	49%	41%	3.4	0.47	0.6	3.07
DAR-030-15	Klassic View 76mm Sliding Window - Double Glazed	4FGI Env Gy/8Ar/4FGI OE Gy	4	3.5	59%	34%	3.4	0.34	0.38	3.07

Window ID	System	Glazing	Cooling Stars	Heating Stars	Cool %	Heat %	Uw	SHGC	Tvw	Air Inf
DAR-029-01	Klassic View 76mm Sliding Window - Single Glazed	6.38CPClr	2	3	38%	27%	4.8	0.54	0.62	3.07
DAR-029-02	Klassic View 76mm Sliding Window - Single Glazed	10.38CPClr	2.5	3	41%	27%	4.8	0.5	0.6	3.07
DAR-029-03	Klassic View 76mm Sliding Window - Single Glazed	10.38CPGy	3	2.5	50%	20%	4.8	0.37	0.29	3.07
DAR-029-04	Klassic View 76mm Sliding Window - Single Glazed	10.38ClrLam	1.5	2	27%	11%	6.3	0.58	0.65	3.07
DAR-029-05	Klassic View 76mm Sliding Window - Single Glazed	10.38GyLam	2	1.5	37%	5%	6.3	0.46	0.31	3.07
DAR-029-06	Klassic View 76mm Sliding Window - Single Glazed	10.38EVGy	3.5	2.5	53%	14%	4.9	0.32	0.24	3.07
DAR-029-07	Klassic View 76mm Sliding Window - Single Glazed	10.38EVSGn	3.5	2.5	54%	16%	4.8	0.31	0.45	3.07
DAR-029-08	Klassic View 76mm Sliding Window - Single Glazed	10.38VLamSGn	2.5	1.5	40%	1%	6.3	0.4	0.49	3.07
DAR-029-09	Klassic View 76mm Sliding Window - Single Glazed	6.38ClrLam	1	2	22%	11%	6.4	0.63	0.67	3.07
DAR-029-10	Klassic View 76mm Sliding Window - Single Glazed	6.38CPGy	3	2.5	48%	20%	4.8	0.4	0.29	3.07
DAR-029-11	Klassic View 76mm Sliding Window - Single Glazed	6.38CPNtl	3	2.5	47%	20%	4.9	0.41	0.45	3.07
DAR-029-12	Klassic View 76mm Sliding Window - Single Glazed	6.38CPGn	3	2.5	48%	20%	4.9	0.4	0.53	3.07
DAR-029-13	Klassic View 76mm Sliding Window - Single Glazed	6.38TransLam	3	0	45%	-5%	6.4	0.33	0.25	3.07
DAR-029-14	Klassic View 76mm Sliding Window - Single Glazed	6.38GyLam	2	1.5	34%	4%	6.4	0.48	0.32	3.07
DAR-029-15	Klassic View 76mm Sliding Window - Single Glazed	6EVGy	3.5	2	52%	14%	5	0.33	0.24	3.07
DAR-029-16	Klassic View 76mm Sliding Window - Single Glazed	6AzTS21	3.5	0	54%	-2%	5.8	0.24	0.12	3.07
DAR-029-17	Klassic View 76mm Sliding Window - Single Glazed	6EVBlGn	3	2.5	49%	16%	5	0.36	0.43	3.07
DAR-029-18	Klassic View 76mm Sliding Window - Single Glazed	6EVSpGn	3.5	2	53%	12%	5	0.3	0.37	3.07
DAR-029-19	Klassic View 76mm Sliding Window - Single Glazed	6EVClr	2.5	3	40%	23%	5	0.5	0.52	3.07
DAR-029-20	Klassic View 76mm Sliding Window - Single Glazed	6ET	2	3	37%	28%	4.9	0.55	0.62	3.07
DAR-029-21	Klassic View 76mm Sliding Window - Single Glazed	6.38SnClr	2.5	2.5	42%	19%	5.1	0.46	0.51	3.07
DAR-029-22	Klassic View 76mm Sliding Window - Single Glazed	6.38SnGy	3	2	49%	13%	5.1	0.35	0.24	3.07
DAR-029-23	Klassic View 76mm Sliding Window - Single Glazed	6SnClr	2.5	2.5	41%	19%	5.2	0.47	0.51	3.07
DAR-029-24	Klassic View 76mm Sliding Window - Single Glazed	5Clr	1	2	20%	11%	6.5	0.65	0.67	3.07
DAR-029-25	Klassic View 76mm Sliding Window - Single Glazed	5Gy	2	1.5	34%	3%	6.5	0.48	0.36	3.07
DAR-029-26	Klassic View 76mm Sliding Window - Single Glazed	5SpGy	3	0	46%	-7%	6.5	0.3	0.09	3.07
DAR-029-27	Klassic View 76mm Sliding Window - Single Glazed	4Clr	1	2	18%	11%	6.5	0.66	0.68	3.07
DAR-029-28	Klassic View 76mm Sliding Window - Single Glazed	4Gy	1.5	1.5	31%	5%	6.5	0.52	0.42	3.07
DAR-029-29	Klassic View 76mm Sliding Window - Single Glazed	4SnClr	2.5	2.5	40%	19%	5.3	0.48	0.52	3.07
DAR-030-01	Klassic View 76mm Sliding Window - Double Glazed	4Clr/8/4Clr	2	4	36%	36%	4.3	0.59	0.61	3.07
DAR-030-02	Klassic View 76mm Sliding Window - Double Glazed	4Clr/8/4ET	2.5	4	42%	40%	3.8	0.55	0.56	3.07
DAR-030-03	Klassic View 76mm Sliding Window - Double Glazed	6.38CPClr/6/4Clr	3	3.5	46%	35%	4	0.48	0.56	3.07
DAR-030-04	Klassic View 76mm Sliding Window - Double Glazed	6.38CPGy/6/4Clr	3.5	3	55%	27%	4	0.35	0.26	3.07
DAR-030-05	Klassic View 76mm Sliding Window - Double Glazed	6.38CPNtl/6/4Clr	3.5	3	54%	28%	4	0.36	0.4	3.07
DAR-030-06	Klassic View 76mm Sliding Window - Double Glazed	6TS21/6/4Clr	4.5	2	64%	14%	4.3	0.2	0.14	3.07
DAR-030-07	Klassic View 76mm Sliding Window - Double Glazed	6TS21/6/4ET	5	2.5	66%	16%	4	0.18	0.13	3.07
DAR-030-08	Klassic View 76mm Sliding Window - Double Glazed	6EVGy/6/4Clr	4	3	59%	23%	4.1	0.29	0.22	3.07
DAR-030-09	Klassic View 76mm Sliding Window - Double Glazed	6SGn/6/4Clr	3.5	2.5	54%	21%	4.4	0.34	0.45	3.07
DAR-030-10	Klassic View 76mm Sliding Window - Double Glazed	5Clr/6/5Clr	2	3.5	38%	33%	4.5	0.56	0.6	3.07
DAR-030-11	Klassic View 76mm Sliding Window - Double Glazed	4SnClr/8/4Clr	3.5	3.5	51%	32%	4	0.42	0.47	3.07
DAR-030-12	Klassic View 76mm Sliding Window - Double Glazed	4SpGn/8/4ET	4	3	57%	28%	3.9	0.33	0.45	3.07
DAR-030-13	Klassic View 76mm Sliding Window - Double Glazed	4FGI Mat/8Ar/6FGI OE Prv	3	4.5	49%	42%	3.4	0.48	0.61	3.07
DAR-030-14	Klassic View 76mm Sliding Window - Double Glazed	4FGI Env Clr/8Ar/4FGI OE Clr	3	4	49%	41%	3.4	0.47	0.6	3.07
DAR-030-15	Klassic View 76mm Sliding Window - Double Glazed	4FGI Env Gy/8Ar/4FGI OE Gy	4	3.5	59%	34%	3.4	0.34	0.38	3.07
