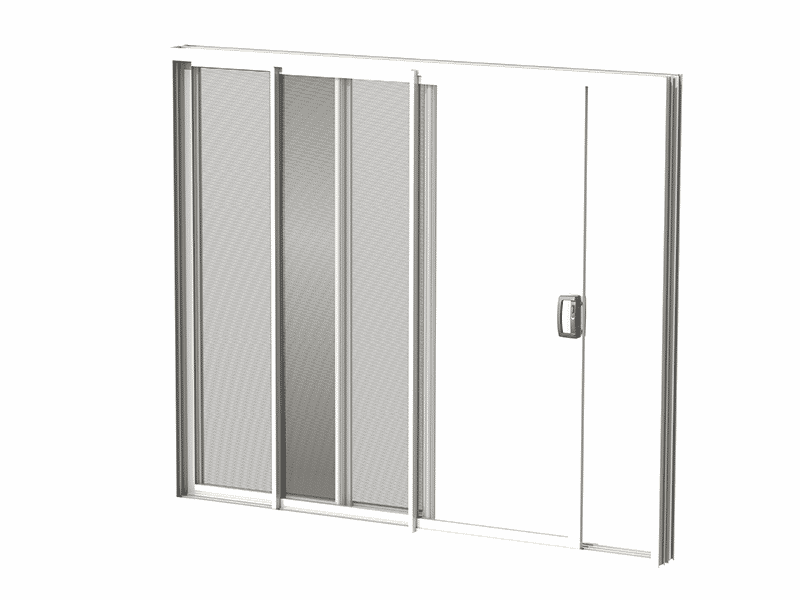

About KlassicView 53mm Sliding Window

The KlassicView 53mm Sliding Window combines functionality and premium quality with a modern slimline design. With a wide range of interlocks available, the 53mm Sliding Window also allows for the installation of a fly screen. Designed for Australian climatic conditions, the KlassicView double hung window has been tested and exceeds Australian Standard AS2047.
Like all other KlassicView systems, it features an inbuilt weather flap, that reduces air and water penetration.

Design Features:

Accepts glass thickness 4mm~10.38mm Single Glazed
Frame Height to 1500mm, Panel Width 1200mm
Fly Screen available
Slim profile for aesthetics

Built in weather flap for air and water protection
A range of Interlocks available
Both have a mullion lock
Compatible with other KlassicView Systems

WERS Ratings

The Window Energy Rating Scheme (WERS) is accredited by the AFRC – which means that WERS ratings are compliant with the NCC.

Reports are prescribed both the window performance for total window U Value (Uw) and total window Solar Heat Gain Coefficient (SHGCw).

U-value

U-value measures how well a product prevents heat from escaping.

It is a measure of the rate of non-solar heat loss or gain through a material or assembly.

U-value ratings generally fall between 2.0-10.0 W/m2.K for Australian products. The lower the U-value, the greater a window’s resistance to heat and cold flow and the better its insulating value.

Solar Heat Gain Co-efficient (SHGC)

SHGC measures how well a product blocks heat caused by sunlight. SHGC is expressed as a number between 0 and 1. The lower a window’s SHGC, the less solar heat it transmits.

Tested to AS2047

Under the Building Code of Australia, we are required to produce windows and doors that meet mandatory minimum specifications under Australian Standard (AS) 2047 – including AS1288.

Simulations of High Winds and Driving Rains

AS4420.2 Deflection Test – positive and negative wind pressures are applied to the face of the window to test the maximum deflection under wind load.
AS4420.5 Water Penetration Resistance Test – to verify that no water leaks through the window into the building.

Operating Force Requirement

AS4420.3 Operating Force Test – to verify that an opening sash is capable of opening and closing without undue effort.

Air Infiltration Pressure

AS4220.4 Air In filtration Test – the air leakage of a window is tested to ensure energy and acoustic efficiency.

Ultimate Strength Testing

AS4420.6 Ultimate Strength Test – negative and positive wind pressures are applied to the window to at least 1.5 times the design wind pressure to ensure it does not fail in unusual wind conditions.

Download CAD Drawings

Please note: file will be in .zip format.

About

About KlassicView 53mm Sliding Window

The KlassicView 53mm Sliding Window combines functionality and premium quality with a modern slimline design. With a wide range of interlocks available, the 53mm Sliding Window also allows for the installation of a fly screen. Designed for Australian climatic conditions, the KlassicView double hung window has been tested and exceeds Australian Standard AS2047.
Like all other KlassicView systems, it features an inbuilt weather flap, that reduces air and water penetration.

Design Features:

Accepts glass thickness 4mm~10.38mm Single Glazed
Frame Height to 1500mm, Panel Width 1200mm
Fly Screen available
Slim profile for aesthetics

Built in weather flap for air and water protection
A range of Interlocks available
Both have a mullion lock
Compatible with other KlassicView Systems

Wers Ratings

WERS Ratings

The Window Energy Rating Scheme (WERS) is accredited by the AFRC – which means that WERS ratings are compliant with the NCC.

Reports are prescribed both the window performance for total window U Value (Uw) and total window Solar Heat Gain Coefficient (SHGCw).

U-value

U-value measures how well a product prevents heat from escaping.

It is a measure of the rate of non-solar heat loss or gain through a material or assembly.

U-value ratings generally fall between 2.0-10.0 W/m2.K for Australian products. The lower the U-value, the greater a window’s resistance to heat and cold flow and the better its insulating value.

Solar Heat Gain Co-efficient (SHGC)

SHGC measures how well a product blocks heat caused by sunlight. SHGC is expressed as a number between 0 and 1. The lower a window’s SHGC, the less solar heat it transmits.

Testing

Tested to AS2047

Under the Building Code of Australia, we are required to produce windows and doors that meet mandatory minimum specifications under Australian Standard (AS) 2047 – including AS1288.

Simulations of High Winds and Driving Rains

AS4420.2 Deflection Test – positive and negative wind pressures are applied to the face of the window to test the maximum deflection under wind load.
AS4420.5 Water Penetration Resistance Test – to verify that no water leaks through the window into the building.

Operating Force Requirement

AS4420.3 Operating Force Test – to verify that an opening sash is capable of opening and closing without undue effort.

Air Infiltration Pressure

AS4220.4 Air In filtration Test – the air leakage of a window is tested to ensure energy and acoustic efficiency.

Ultimate Strength Testing

AS4420.6 Ultimate Strength Test – negative and positive wind pressures are applied to the window to at least 1.5 times the design wind pressure to ensure it does not fail in unusual wind conditions.

Technical Manuals

CAD Drawings

Download CAD Drawings

Please note: file will be in .zip format.

Download Brochure

Specifications

System	Maximum weight per panel	Maximum height per panel	Maxiumim Width per panel	Glass Thickness	Test Report No.	Water Rating (Pa)	Structural (Pa)	Ultimate (Pa)
Klassicview 53mm Sliding Window	40kgs	1500mm	1200mm	Single Glazed=10.38mm	AZT0223.14	250	1700	2100

Residential Hardware

Find Out More

Window ID	System	Glazing	Cooling Stars	Heating Stars	Cool %	Heat %	Uw	SHGC	Tvw	Air Inf
DAR-042-01	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38TLam	2	2	32%	12%	6.2	0.53	0.52	0.98
DAR-042-02	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38Sn	2.5	3	43%	25%	4.9	0.46	0.53	0.98
DAR-042-03	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38VLamSpGn	2.5	1.5	40%	6%	6.2	0.43	0.52	0.98
DAR-042-04	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38EVSpGn	3.5	2.5	55%	19%	4.7	0.31	0.39	0.98
DAR-042-05	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38EVGy	3.5	2.5	53%	20%	4.7	0.33	0.25	0.98
DAR-042-06	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38CPGy	3	3	50%	26%	4.5	0.39	0.31	0.98
DAR-042-07	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38CPClr	2.5	3.5	39%	34%	4.5	0.54	0.66	0.98
DAR-042-08	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38GyLam	2	2	35%	10%	6.2	0.49	0.33	0.98
DAR-042-09	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38ClrLam	1.5	2.5	25%	16%	6.2	0.61	0.69	0.98
DAR-042-10	Klassic View 53mm Residential Sliding Window - Single Glazed	10Sn	2.5	3	42%	25%	4.9	0.48	0.53	0.98
DAR-042-11	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38CPGy	3	3	48%	26%	4.6	0.42	0.31	0.98
DAR-042-12	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38CPNtl	3	3	47%	27%	4.6	0.43	0.48	0.98
DAR-042-13	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38CPGn	3	3	47%	27%	4.6	0.42	0.57	0.98
DAR-042-14	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38CPClr	2	3.5	37%	34%	4.6	0.57	0.66	0.98
DAR-042-15	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38Sn	2.5	3	42%	25%	5	0.48	0.54	0.98
DAR-042-16	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38TLam	3	1.5	45%	0%	6.3	0.34	0.27	0.98
DAR-042-17	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38SnGy	3	2.5	49%	19%	4.9	0.37	0.27	0.98
DAR-042-18	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38VLamGy	2	2	33%	9%	6.3	0.51	0.34	0.98
DAR-042-19	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38VLamClr	1	2.5	21%	16%	6.3	0.65	0.71	0.98
DAR-042-20	Klassic View 53mm Residential Sliding Window - Single Glazed	6ET	2	3.5	36%	34%	4.6	0.58	0.66	0.98
DAR-042-21	Klassic View 53mm Residential Sliding Window - Single Glazed	6Sn	2.5	3	40%	25%	5	0.5	0.55	0.98
DAR-042-22	Klassic View 53mm Residential Sliding Window - Single Glazed	6TS21Az	3.5	1.5	54%	3%	5.6	0.25	0.13	0.98
DAR-042-23	Klassic View 53mm Residential Sliding Window - Single Glazed	6EVSpB	3.5	2.5	54%	18%	4.8	0.31	0.31	0.98
DAR-042-24	Klassic View 53mm Residential Sliding Window - Single Glazed	6EVSpGn	3.5	2.5	54%	18%	4.8	0.31	0.39	0.98
DAR-042-25	Klassic View 53mm Residential Sliding Window - Single Glazed	6EVBG	3	3	49%	22%	4.8	0.38	0.46	0.98
DAR-042-26	Klassic View 53mm Residential Sliding Window - Single Glazed	6EVGy	3.5	2.5	52%	20%	4.8	0.35	0.26	0.98
DAR-042-27	Klassic View 53mm Residential Sliding Window - Single Glazed	6EVClr	2.5	3.5	40%	29%	4.8	0.52	0.54	0.98
DAR-042-28	Klassic View 53mm Residential Sliding Window - Single Glazed	5Clr	1	2.5	17%	16%	6.4	0.68	0.72	0.98
DAR-042-29	Klassic View 53mm Residential Sliding Window - Single Glazed	5Gy	2	2	32%	8%	6.4	0.51	0.39	0.98
DAR-042-30	Klassic View 53mm Residential Sliding Window - Single Glazed	5SpGn	2	1.5	36%	6%	6.4	0.46	0.57	0.98
DAR-042-31	Klassic View 53mm Residential Sliding Window - Single Glazed	4Clr	1	2.5	15%	16%	6.4	0.7	0.72	0.98
DAR-042-32	Klassic View 53mm Residential Sliding Window - Single Glazed	4Gy	1.5	2	29%	10%	6.4	0.55	0.45	0.98
DAR-042-33	Klassic View 53mm Residential Sliding Window - Single Glazed	4Sn	2.5	3	39%	25%	5.1	0.51	0.55	0.98

Window ID	System	Glazing	Cooling Stars	Heating Stars	Cool %	Heat %	Uw	SHGC	Tvw	Air Inf
DAR-042-01	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38TLam	2	2	32%	12%	6.2	0.53	0.52	0.98
DAR-042-02	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38Sn	2.5	3	43%	25%	4.9	0.46	0.53	0.98
DAR-042-03	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38VLamSpGn	2.5	1.5	40%	6%	6.2	0.43	0.52	0.98
DAR-042-04	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38EVSpGn	3.5	2.5	55%	19%	4.7	0.31	0.39	0.98
DAR-042-05	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38EVGy	3.5	2.5	53%	20%	4.7	0.33	0.25	0.98
DAR-042-06	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38CPGy	3	3	50%	26%	4.5	0.39	0.31	0.98
DAR-042-07	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38CPClr	2.5	3.5	39%	34%	4.5	0.54	0.66	0.98
DAR-042-08	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38GyLam	2	2	35%	10%	6.2	0.49	0.33	0.98
DAR-042-09	Klassic View 53mm Residential Sliding Window - Single Glazed	10.38ClrLam	1.5	2.5	25%	16%	6.2	0.61	0.69	0.98
DAR-042-10	Klassic View 53mm Residential Sliding Window - Single Glazed	10Sn	2.5	3	42%	25%	4.9	0.48	0.53	0.98
DAR-042-11	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38CPGy	3	3	48%	26%	4.6	0.42	0.31	0.98
DAR-042-12	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38CPNtl	3	3	47%	27%	4.6	0.43	0.48	0.98
DAR-042-13	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38CPGn	3	3	47%	27%	4.6	0.42	0.57	0.98
DAR-042-14	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38CPClr	2	3.5	37%	34%	4.6	0.57	0.66	0.98
DAR-042-15	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38Sn	2.5	3	42%	25%	5	0.48	0.54	0.98
DAR-042-16	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38TLam	3	1.5	45%	0%	6.3	0.34	0.27	0.98
DAR-042-17	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38SnGy	3	2.5	49%	19%	4.9	0.37	0.27	0.98
DAR-042-18	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38VLamGy	2	2	33%	9%	6.3	0.51	0.34	0.98
DAR-042-19	Klassic View 53mm Residential Sliding Window - Single Glazed	6.38VLamClr	1	2.5	21%	16%	6.3	0.65	0.71	0.98
DAR-042-20	Klassic View 53mm Residential Sliding Window - Single Glazed	6ET	2	3.5	36%	34%	4.6	0.58	0.66	0.98
DAR-042-21	Klassic View 53mm Residential Sliding Window - Single Glazed	6Sn	2.5	3	40%	25%	5	0.5	0.55	0.98
DAR-042-22	Klassic View 53mm Residential Sliding Window - Single Glazed	6TS21Az	3.5	1.5	54%	3%	5.6	0.25	0.13	0.98
DAR-042-23	Klassic View 53mm Residential Sliding Window - Single Glazed	6EVSpB	3.5	2.5	54%	18%	4.8	0.31	0.31	0.98
DAR-042-24	Klassic View 53mm Residential Sliding Window - Single Glazed	6EVSpGn	3.5	2.5	54%	18%	4.8	0.31	0.39	0.98
DAR-042-25	Klassic View 53mm Residential Sliding Window - Single Glazed	6EVBG	3	3	49%	22%	4.8	0.38	0.46	0.98
DAR-042-26	Klassic View 53mm Residential Sliding Window - Single Glazed	6EVGy	3.5	2.5	52%	20%	4.8	0.35	0.26	0.98
DAR-042-27	Klassic View 53mm Residential Sliding Window - Single Glazed	6EVClr	2.5	3.5	40%	29%	4.8	0.52	0.54	0.98
DAR-042-28	Klassic View 53mm Residential Sliding Window - Single Glazed	5Clr	1	2.5	17%	16%	6.4	0.68	0.72	0.98
DAR-042-29	Klassic View 53mm Residential Sliding Window - Single Glazed	5Gy	2	2	32%	8%	6.4	0.51	0.39	0.98
DAR-042-30	Klassic View 53mm Residential Sliding Window - Single Glazed	5SpGn	2	1.5	36%	6%	6.4	0.46	0.57	0.98
DAR-042-31	Klassic View 53mm Residential Sliding Window - Single Glazed	4Clr	1	2.5	15%	16%	6.4	0.7	0.72	0.98
DAR-042-32	Klassic View 53mm Residential Sliding Window - Single Glazed	4Gy	1.5	2	29%	10%	6.4	0.55	0.45	0.98
DAR-042-33	Klassic View 53mm Residential Sliding Window - Single Glazed	4Sn	2.5	3	39%	25%	5.1	0.51	0.55	0.98
