About CityView Truth Awning & Casement Window

The CityView Truth Awning and Casement Window is a high-performance window, that not only provides user-friendly operation but also eliminates interference with curtains and blinds.

This system requires less effort to operate than standard chain winders is for projects that require larger windows. It also features a geared handle design and offers the option to include a multi-point locking system.

Designed and engineered in Australia, the CityView Truth Awning and Casement window, has been tested to and exceeds Australian Standard AS2047.

Design Features:

Accepts glass thickness from 6mm – 30mm
Compatible with other Darley Aluminium Commercial and Systems
Compatible with a large suite of Darley mainframe options

Less effort to use compared to chainwinders
Tested and approved by an independent NATA accredited laboratory

Tested to AS2047

Under the Building Code of Australia, we are required to produce windows and doors that meet mandatory minimum specifications under Australian Standard (AS) 2047 – including AS1288.

Simulations of High Winds and Driving Rains

AS4420.2 Deflection Test – positive and negative wind pressures are applied to the face of the window to test the maximum deflection under wind load.
AS4420.5 Water Penetration Resistance Test – to verify that no water leaks through the window into the building.

Operating Force Requirement

AS4420.3 Operating Force Test – to verify that an opening sash is capable of opening and closing without undue effort.

Air Infiltration Pressure

AS4220.4 Air In filtration Test – the air leakage of a window is tested to ensure energy and acoustic efficiency.

Ultimate Strength Testing

AS4420.6 Ultimate Strength Test – negative and positive wind pressures are applied to the window to at least 1.5 times the design wind pressure to ensure it does not fail in unusual wind conditions.

Download CAD Drawings

Please note: file will be in .zip format.

About

About CityView Truth Awning & Casement Window

The CityView Truth Awning and Casement Window is a high-performance window, that not only provides user-friendly operation but also eliminates interference with curtains and blinds.

This system requires less effort to operate than standard chain winders is for projects that require larger windows. It also features a geared handle design and offers the option to include a multi-point locking system.

Designed and engineered in Australia, the CityView Truth Awning and Casement window, has been tested to and exceeds Australian Standard AS2047.

Design Features:

Accepts glass thickness from 6mm – 30mm
Compatible with other Darley Aluminium Commercial and Systems
Compatible with a large suite of Darley mainframe options

Less effort to use compared to chainwinders
Tested and approved by an independent NATA accredited laboratory

Wers Ratings

Testing

Tested to AS2047

Under the Building Code of Australia, we are required to produce windows and doors that meet mandatory minimum specifications under Australian Standard (AS) 2047 – including AS1288.

Simulations of High Winds and Driving Rains

AS4420.2 Deflection Test – positive and negative wind pressures are applied to the face of the window to test the maximum deflection under wind load.
AS4420.5 Water Penetration Resistance Test – to verify that no water leaks through the window into the building.

Operating Force Requirement

AS4420.3 Operating Force Test – to verify that an opening sash is capable of opening and closing without undue effort.

Air Infiltration Pressure

AS4220.4 Air In filtration Test – the air leakage of a window is tested to ensure energy and acoustic efficiency.

Ultimate Strength Testing

AS4420.6 Ultimate Strength Test – negative and positive wind pressures are applied to the window to at least 1.5 times the design wind pressure to ensure it does not fail in unusual wind conditions.

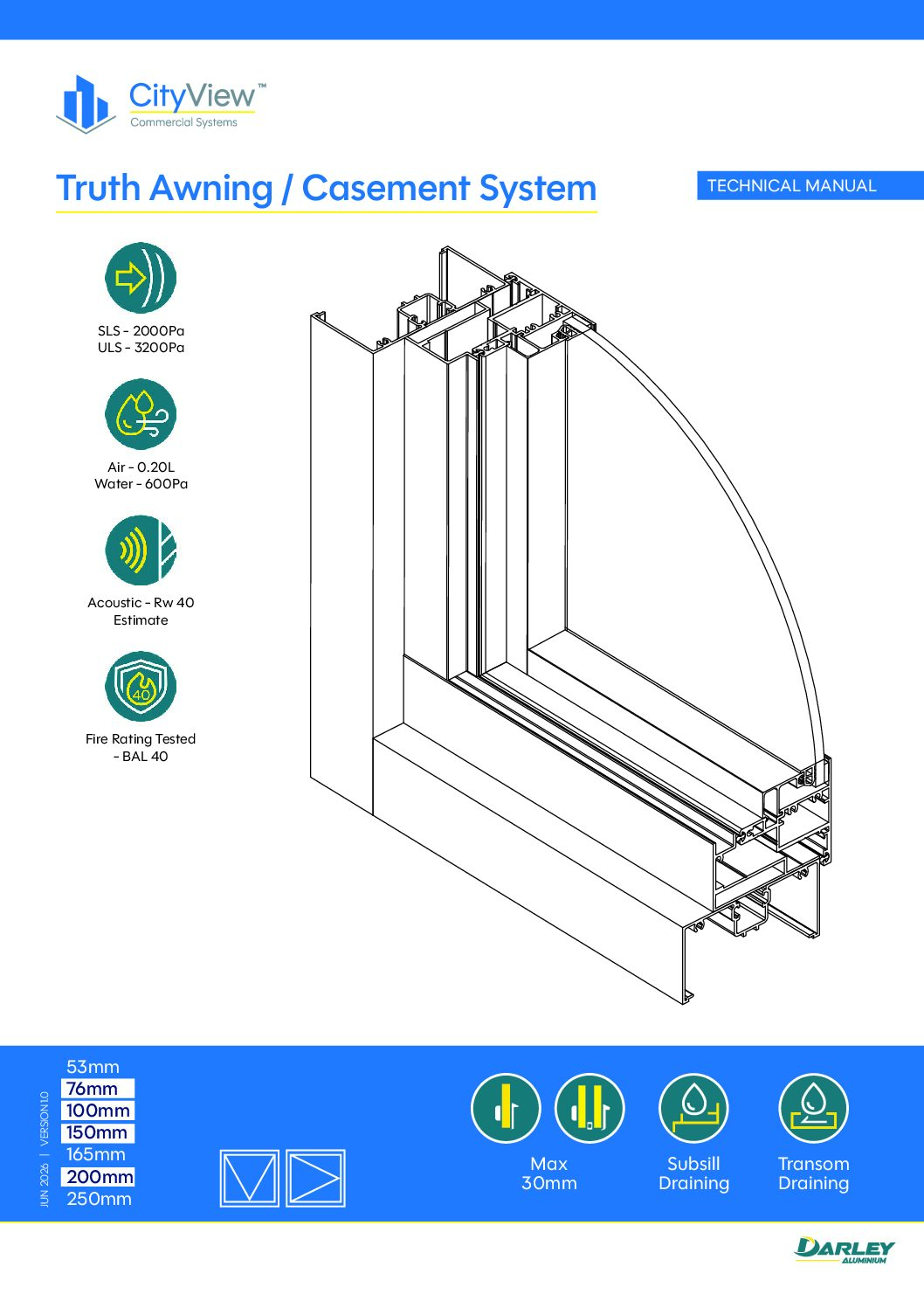

Technical Manuals

CAD Drawings

Download CAD Drawings

Please note: file will be in .zip format.

Download the CityView™ Catalogue

Specifications

System	Maximum weight per panel	Maximum Sash Height	Maximum Sash Width	Glass Thickness	Test Report No.	Water Rating (Pa)	Structural (Pa)	Ultimate (Pa)
Truth Awning	Stays – 136kg* (Depending on Stay Option)	2200mm	1300mm	6mm to 30mm	AZT0041.17	600	2000	3200

image presents awning casement window configuration

Commercial Hardware

Find Out More

Window ID	System	Glazing	Cooling Stars	Heating Stars	Cool %	Heat %	Uw	SHGC	Tvw
DAR-043-01	City View High Performance Awning - Double Glazed	6Clr/12Ar/10.38Clr	3	4.5	47%	45%	4.8	0.43	0.43
DAR-043-02	City View High Performance Awning - Double Glazed	6.38Gy/12Ar/6.38Clr	3.5	4	54%	38%	4.8	0.31	0.21
DAR-043-03	City View High Performance Awning - Double Glazed	6.38Clr/12Ar/6.38Clr	3	4.5	47%	43%	4.9	0.41	0.43
DAR-043-04	City View High Performance Awning - Double Glazed	6ETGy/12Ar/6.38Clr	4	4	60%	40%	4.4	0.26	0.2
DAR-043-05	City View High Performance Awning - Double Glazed	6TS21Gn/12Ar/6Clr	5	3.5	65%	29%	4.8	0.15	0.09
DAR-043-06	City View High Performance Awning - Double Glazed	6ET/12/6Clr	3.5	4.5	51%	47%	4.5	0.39	0.41
DAR-043-07	City View High Performance Awning - Double Glazed	6/12/6EVClr	3.5	4.5	51%	46%	4.5	0.38	0.34
DAR-043-08	City View High Performance Awning - Double Glazed	6SpGn/12/6EVClr	4.5	4	61%	36%	4.5	0.22	0.26
DAR-043-09	City View High Performance Awning - Double Glazed	6TS21/12/6EVClr	5	3.5	67%	31%	4.5	0.15	0.09
DAR-043-10	City View High Performance Awning - Double Glazed	6EVClr/12/6Clr	3.5	4.5	52%	44%	4.5	0.36	0.34
DAR-043-11	City View High Performance Awning - Double Glazed	6SpGn/12/6Clr	4	4	56%	34%	4.9	0.27	0.33
DAR-043-12	City View High Performance Awning - Double Glazed	6Clr/12/6Clr	3	4.5	45%	44%	4.9	0.44	0.44
DAR-043-13	City View High Performance Awning - Double Glazed	6InsEG/12/6Clr	4	4	57%	34%	4.9	0.27	0.33
DAR-043-14	City View High Performance Awning - Double Glazed	6InsEG/12/6ET	4.5	4	61%	37%	4.5	0.24	0.3
DAR-043-15	City View High Performance Awning - Double Glazed	6InsTS21/12/6Clr	4.5	3.5	64%	29%	4.8	0.17	0.1
DAR-043-16	City View High Performance Awning - Double Glazed	6EVClr/6Ar/6Clr	3.5	4.5	52%	43%	4.7	0.36	0.34
DAR-043-17	City View High Performance Awning - Double Glazed	6SpGy/6Ar/6Clr	4.5	3.5	63%	26%	5	0.17	0.04
DAR-043-18	City View High Performance Awning - Double Glazed	6EoGy/12/6Clr	3.5	4	54%	36%	4.9	0.31	0.22
DAR-043-19	City View High Performance Awning - Double Glazed	6EoGy/12/6ET		4	58%	40%	4.5	0.28	0.2
DAR-043-20	City View High Performance Awning - Double Glazed	FGI OE Acu 6.5/12Ar/6	3.5	4.5	54%	47%	4.2	0.35	0.44
DAR-043-21	City View High Performance Awning - Double Glazed	FGI OE Prv PTk Wht 6.38/12Ar/6	4	4.5	58%	44%	4.3	0.29	0.33
DAR-043-22	City View High Performance Awning - Double Glazed	FGI OE Env Clr 6/12Ar/6	3.5	5	53%	48%	4.2	0.37	0.44
DAR-043-23	City View High Performance Awning - Double Glazed	FGI OE Env Gy 6/12Ar/6	4.5	4	62%	40%	4.2	0.23	0.21
DAR-044-01	City View High Performance Awning - Single Glazed	10.38GyLam	2.5	2.5	41%	17%	6.7	0.38	0.23
DAR-044-02	City View High Performance Awning - Single Glazed	6.38CPGy	3	3.5	48%	27%	5.8	0.33	0.22
DAR-044-03	City View High Performance Awning - Single Glazed	6.38CPNtl	3	3.5	47%	27%	5.8	0.34	0.33
DAR-044-04	City View High Performance Awning - Single Glazed	6.38CPGn	3	3.5	48%	27%	5.8	0.34	0.4
DAR-044-05	City View High Performance Awning - Single Glazed	6.38CPClr	2.5	3.5	41%	33%	5.8	0.43	0.46
DAR-044-06	City View High Performance Awning - Single Glazed	6.38ClrLam	2	3	33%	22%	6.8	0.49	0.49
DAR-044-07	City View High Performance Awning - Single Glazed	6SolT	3	3.5	47%	28%	5.8	0.35	0.35
DAR-044-08	City View High Performance Awning - Single Glazed	6SolTGy	3.5	3	53%	22%	5.8	0.26	0.17
DAR-044-09	City View High Performance Awning - Single Glazed	6Clr	1.5	3	31%	22%	6.8	0.51	0.49
DAR-044-10	City View High Performance Awning - Single Glazed	6Gy	2.5	2.5	40%	15%	6.8	0.37	0.23
DAR-044-11	City View High Performance Awning - Single Glazed	6TS21	3.5	2.5	52%	12%	6.4	0.22	0.11
DAR-044-12	City View High Performance Awning - Single Glazed	6SpGn	2.5	2.5	42%	13%	6.8	0.34	0.37
DAR-044-13	City View High Performance Awning - Single Glazed	6SpGy	3	2	48%	8%	6.8	0.25	0.05
DAR-044-14	City View High Performance Awning - Single Glazed	6ET	2.5	3.5	41%	33%	5.8	0.44	0.46
DAR-044-15	City View High Performance Awning - Single Glazed	6EVSpGn	3.5	3	52%	21%	5.9	0.26	0.27
DAR-044-16	City View High Performance Awning - Single Glazed	6ETGy	3	3	49%	25%	5.8	0.32	0.22
DAR-044-17	City View High Performance Awning - Single Glazed	6AZTS21	3.5	2.5	53%	11%	6.4	0.21	0.09
DAR-044-18	City View High Performance Awning - Single Glazed	6EVBGn	3	3	49%	24%	5.9	0.31	0.32
DAR-044-19	City View High Performance Awning - Single Glazed	6EVGy	3.5	3	51%	23%	5.9	0.28	0.18
DAR-044-20	City View High Performance Awning - Single Glazed	6EVClr	2.5	3.5	43%	29%	5.9	0.4	0.37
DAR-044-21	City View High Performance Awning - Single Glazed	6SpB	2.5	2.5	43%	13%	6.8	0.34	0.29
DAR-044-22	City View High Performance Awning - Single Glazed	6EVBz	2.5	2.5	43%	14%	6.7	0.34	0.21

Window ID	System	Glazing	Cooling Stars	Heating Stars	Cool %	Heat %	Uw	SHGC	Tvw
DAR-043-01	City View High Performance Awning - Double Glazed	6Clr/12Ar/10.38Clr	3	4.5	47%	45%	4.8	0.43	0.43
DAR-043-02	City View High Performance Awning - Double Glazed	6.38Gy/12Ar/6.38Clr	3.5	4	54%	38%	4.8	0.31	0.21
DAR-043-03	City View High Performance Awning - Double Glazed	6.38Clr/12Ar/6.38Clr	3	4.5	47%	43%	4.9	0.41	0.43
DAR-043-04	City View High Performance Awning - Double Glazed	6ETGy/12Ar/6.38Clr	4	4	60%	40%	4.4	0.26	0.2
DAR-043-05	City View High Performance Awning - Double Glazed	6TS21Gn/12Ar/6Clr	5	3.5	65%	29%	4.8	0.15	0.09
DAR-043-06	City View High Performance Awning - Double Glazed	6ET/12/6Clr	3.5	4.5	51%	47%	4.5	0.39	0.41
DAR-043-07	City View High Performance Awning - Double Glazed	6/12/6EVClr	3.5	4.5	51%	46%	4.5	0.38	0.34
DAR-043-08	City View High Performance Awning - Double Glazed	6SpGn/12/6EVClr	4.5	4	61%	36%	4.5	0.22	0.26
DAR-043-09	City View High Performance Awning - Double Glazed	6TS21/12/6EVClr	5	3.5	67%	31%	4.5	0.15	0.09
DAR-043-10	City View High Performance Awning - Double Glazed	6EVClr/12/6Clr	3.5	4.5	52%	44%	4.5	0.36	0.34
DAR-043-11	City View High Performance Awning - Double Glazed	6SpGn/12/6Clr	4	4	56%	34%	4.9	0.27	0.33
DAR-043-12	City View High Performance Awning - Double Glazed	6Clr/12/6Clr	3	4.5	45%	44%	4.9	0.44	0.44
DAR-043-13	City View High Performance Awning - Double Glazed	6InsEG/12/6Clr	4	4	57%	34%	4.9	0.27	0.33
DAR-043-14	City View High Performance Awning - Double Glazed	6InsEG/12/6ET	4.5	4	61%	37%	4.5	0.24	0.3
DAR-043-15	City View High Performance Awning - Double Glazed	6InsTS21/12/6Clr	4.5	3.5	64%	29%	4.8	0.17	0.1
DAR-043-16	City View High Performance Awning - Double Glazed	6EVClr/6Ar/6Clr	3.5	4.5	52%	43%	4.7	0.36	0.34
DAR-043-17	City View High Performance Awning - Double Glazed	6SpGy/6Ar/6Clr	4.5	3.5	63%	26%	5	0.17	0.04
DAR-043-18	City View High Performance Awning - Double Glazed	6EoGy/12/6Clr	3.5	4	54%	36%	4.9	0.31	0.22
DAR-043-19	City View High Performance Awning - Double Glazed	6EoGy/12/6ET		4	58%	40%	4.5	0.28	0.2
DAR-043-20	City View High Performance Awning - Double Glazed	FGI OE Acu 6.5/12Ar/6	3.5	4.5	54%	47%	4.2	0.35	0.44
DAR-043-21	City View High Performance Awning - Double Glazed	FGI OE Prv PTk Wht 6.38/12Ar/6	4	4.5	58%	44%	4.3	0.29	0.33
DAR-043-22	City View High Performance Awning - Double Glazed	FGI OE Env Clr 6/12Ar/6	3.5	5	53%	48%	4.2	0.37	0.44
DAR-043-23	City View High Performance Awning - Double Glazed	FGI OE Env Gy 6/12Ar/6	4.5	4	62%	40%	4.2	0.23	0.21
DAR-044-01	City View High Performance Awning - Single Glazed	10.38GyLam	2.5	2.5	41%	17%	6.7	0.38	0.23
DAR-044-02	City View High Performance Awning - Single Glazed	6.38CPGy	3	3.5	48%	27%	5.8	0.33	0.22
DAR-044-03	City View High Performance Awning - Single Glazed	6.38CPNtl	3	3.5	47%	27%	5.8	0.34	0.33
DAR-044-04	City View High Performance Awning - Single Glazed	6.38CPGn	3	3.5	48%	27%	5.8	0.34	0.4
DAR-044-05	City View High Performance Awning - Single Glazed	6.38CPClr	2.5	3.5	41%	33%	5.8	0.43	0.46
DAR-044-06	City View High Performance Awning - Single Glazed	6.38ClrLam	2	3	33%	22%	6.8	0.49	0.49
DAR-044-07	City View High Performance Awning - Single Glazed	6SolT	3	3.5	47%	28%	5.8	0.35	0.35
DAR-044-08	City View High Performance Awning - Single Glazed	6SolTGy	3.5	3	53%	22%	5.8	0.26	0.17
DAR-044-09	City View High Performance Awning - Single Glazed	6Clr	1.5	3	31%	22%	6.8	0.51	0.49
DAR-044-10	City View High Performance Awning - Single Glazed	6Gy	2.5	2.5	40%	15%	6.8	0.37	0.23
DAR-044-11	City View High Performance Awning - Single Glazed	6TS21	3.5	2.5	52%	12%	6.4	0.22	0.11
DAR-044-12	City View High Performance Awning - Single Glazed	6SpGn	2.5	2.5	42%	13%	6.8	0.34	0.37
DAR-044-13	City View High Performance Awning - Single Glazed	6SpGy	3	2	48%	8%	6.8	0.25	0.05
DAR-044-14	City View High Performance Awning - Single Glazed	6ET	2.5	3.5	41%	33%	5.8	0.44	0.46
DAR-044-15	City View High Performance Awning - Single Glazed	6EVSpGn	3.5	3	52%	21%	5.9	0.26	0.27
DAR-044-16	City View High Performance Awning - Single Glazed	6ETGy	3	3	49%	25%	5.8	0.32	0.22
DAR-044-17	City View High Performance Awning - Single Glazed	6AZTS21	3.5	2.5	53%	11%	6.4	0.21	0.09
DAR-044-18	City View High Performance Awning - Single Glazed	6EVBGn	3	3	49%	24%	5.9	0.31	0.32
DAR-044-19	City View High Performance Awning - Single Glazed	6EVGy	3.5	3	51%	23%	5.9	0.28	0.18
DAR-044-20	City View High Performance Awning - Single Glazed	6EVClr	2.5	3.5	43%	29%	5.9	0.4	0.37
DAR-044-21	City View High Performance Awning - Single Glazed	6SpB	2.5	2.5	43%	13%	6.8	0.34	0.29
DAR-044-22	City View High Performance Awning - Single Glazed	6EVBz	2.5	2.5	43%	14%	6.7	0.34	0.21
