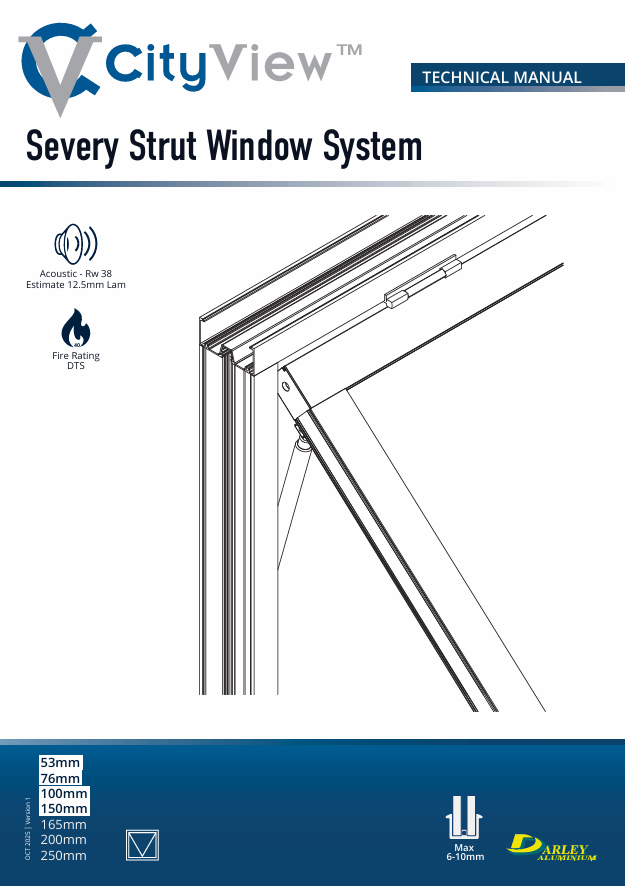

Technical Manuals
Cutting Sheet
CAD Drawings

CityView Servery Strut Window System

Darley is pleased to announce the release of the NEW CityView Servery Strut Window.

A great addition to residential and commercial buildings, this innovative window system offers a seamless transition from indoor to outdoor living spaces. The perfect combination of aesthetics and functionality, this new servery strut window can transform any room by maximising light, enhancing natural airflow & ventilation, and providing unobstructed views.

Design Features:

Expansive outdoor views with a sash that opens 90 degrees
Accepts a glass thickness of up to 10.38mm
Accepts a maximum sash weight of up to 50kg
A versatile window system that is easy to fabricate and install

Heavy duty spigots with a square cut sash means miters won’t open up over time under twisting load
Available in manual and automated options
Compatible with a variety of Darley’s commercial framing systems and CityView window & door systems

Tested to AS2047

Under the Building Code of Australia, we are required to produce windows and doors that meet mandatory minimum specifications under Australian Standard (AS) 2047 – including AS1288.

Simulations of High Winds and Driving Rains

AS4420.2 Deflection Test – positive and negative wind pressures are applied to the face of the window to test the maximum deflection under wind load.
AS4420.5 Water Penetration Resistance Test – to verify that no water leaks through the window into the building.

Operating Force Requirement

AS4420.3 Operating Force Test – to verify that an opening sash is capable of opening and closing without undue effort.

Air Infiltration Pressure

AS4220.4 Air In filtration Test – the air leakage of a window is tested to ensure energy and acoustic efficiency.

Ultimate Strength Testing

AS4420.6 Ultimate Strength Test – negative and positive wind pressures are applied to the window to at least 1.5 times the design wind pressure to ensure it does not fail in unusual wind conditions.

CityView Cutting Sheets

Download CAD Drawings

Please note: file will be in .zip format.
